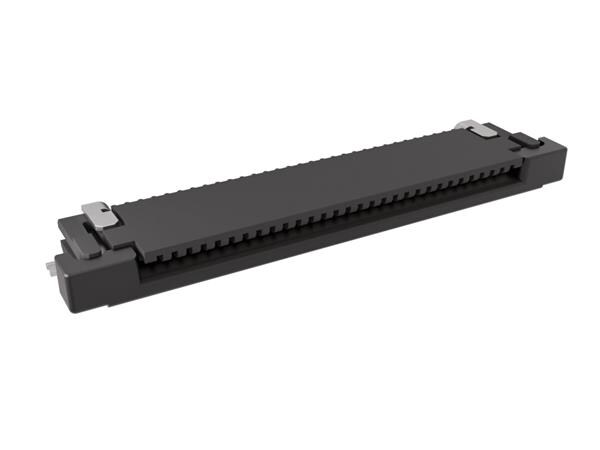

SFV30R-2STBE5HLF Amphenol ICC (FCI)

Description: CONN FFC FPC TOP 30POS 0.5MM R/A, Voltage Rating: 50V, Contact Finish: Gold, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Connector/Contact Type: Contacts, Top, Flat Flex Type: FFC, FPC, Cable End Type: Straight, Tapered, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, FFC, FCB Thickness: 0.30mm, 0.33mm, Contact Material: Phosphor Bronze, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Material Flammability Rating: UL94 V-0, Locking Feature: Slide Lock, Height Above Board: 0.071" (1.80mm), Termination: Solder, Operating Temperature: -55°C ~ 105°C, Pitch: 0.020" (0.50mm), Number of Positions: 30, Mounting Type: Surface Mount, Right Angle.
