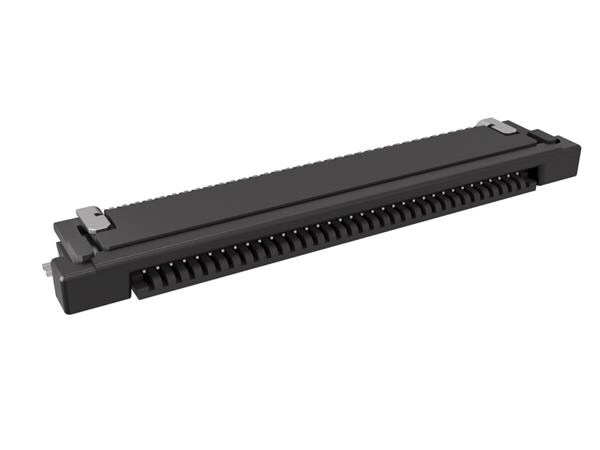

SFV35R-1STBE5HLF Amphenol ICC (FCI)

Description: CONN FFC BOTTOM 35POS 0.5MM R/A, Packaging: Tape & Reel (TR), Features: Solder Retention, Zero Insertion Force (ZIF), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 35, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 105°C, Termination: Solder, Height Above Board: 0.071" (1.80mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, 0.33mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, Cable End Type: Straight, Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom.
