auf Bestellung 3000 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
3000+ | 0.25 EUR |
Produktrezensionen
Produktbewertung abgeben

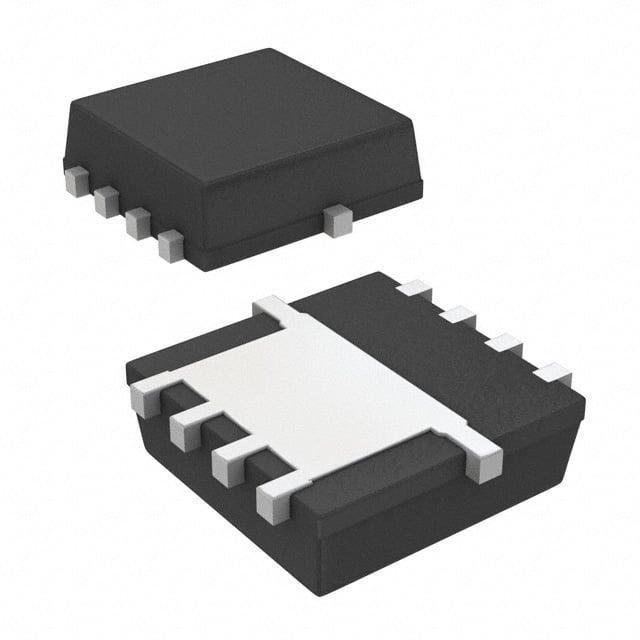

Technische Details SISA18ADN-T1-GE3 Vishay
Description: VISHAY - SISA18ADN-T1-GE3 - Leistungs-MOSFET, n-Kanal, 30 V, 38.3 A, 0.006 ohm, PowerPAK 1212, Oberflächenmontage, tariffCode: 85412900, Transistormontage: Oberflächenmontage, Drain-Source-Spannung Vds: 30V, rohsCompliant: YES, Dauer-Drainstrom Id: 38.3A, hazardous: false, rohsPhthalatesCompliant: YES, Qualifikation: -, MSL: MSL 1 - unbegrenzt, usEccn: EAR99, Gate-Source-Schwellenspannung, max.: 1.2V, euEccn: NLR, Verlustleistung: 19.8W, Bauform - Transistor: PowerPAK 1212, Anzahl der Pins: 8Pin(s), Produktpalette: -, productTraceability: Yes-Date/Lot Code, Kanaltyp: n-Kanal, Rds(on)-Prüfspannung: 10V, Betriebstemperatur, max.: 150°C, Drain-Source-Durchgangswiderstand: 0.006ohm, SVHC: Lead (07-Nov-2024).
Weitere Produktangebote SISA18ADN-T1-GE3 nach Preis ab 0.26 EUR bis 1.53 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
SISA18ADN-T1-GE3 | Hersteller : Vishay |
![]() |
auf Bestellung 3000 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : Vishay Siliconix |
![]() Packaging: Tape & Reel (TR) Package / Case: PowerPAK® 1212-8 Mounting Type: Surface Mount Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 38.3A (Tc) Rds On (Max) @ Id, Vgs: 7.5mOhm @ 10A, 10V Power Dissipation (Max): 3.2W (Ta), 19.8W (Tc) Vgs(th) (Max) @ Id: 2.4V @ 250µA Supplier Device Package: PowerPAK® 1212-8 Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Vgs (Max): +20V, -16V Drain to Source Voltage (Vdss): 30 V Gate Charge (Qg) (Max) @ Vgs: 21.5 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 1000 pF @ 15 V |
auf Bestellung 6000 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : Vishay Semiconductors |
![]() |
auf Bestellung 43065 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : Vishay Siliconix |
![]() Packaging: Cut Tape (CT) Package / Case: PowerPAK® 1212-8 Mounting Type: Surface Mount Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 38.3A (Tc) Rds On (Max) @ Id, Vgs: 7.5mOhm @ 10A, 10V Power Dissipation (Max): 3.2W (Ta), 19.8W (Tc) Vgs(th) (Max) @ Id: 2.4V @ 250µA Supplier Device Package: PowerPAK® 1212-8 Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Vgs (Max): +20V, -16V Drain to Source Voltage (Vdss): 30 V Gate Charge (Qg) (Max) @ Vgs: 21.5 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 1000 pF @ 15 V |
auf Bestellung 13611 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : Vishay |
![]() |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : VISHAY |
![]() tariffCode: 85412900 Transistormontage: Oberflächenmontage Drain-Source-Spannung Vds: 30V rohsCompliant: YES Dauer-Drainstrom Id: 38.3A hazardous: false rohsPhthalatesCompliant: YES Qualifikation: - MSL: MSL 1 - unbegrenzt usEccn: EAR99 Gate-Source-Schwellenspannung, max.: 1.2V euEccn: NLR Verlustleistung: 19.8W Bauform - Transistor: PowerPAK 1212 Anzahl der Pins: 8Pin(s) Produktpalette: - productTraceability: Yes-Date/Lot Code Kanaltyp: n-Kanal Rds(on)-Prüfspannung: 10V Betriebstemperatur, max.: 150°C Drain-Source-Durchgangswiderstand: 0.006ohm SVHC: Lead (07-Nov-2024) |
auf Bestellung 10807 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : VISHAY |
![]() tariffCode: 85412900 Transistormontage: Oberflächenmontage Drain-Source-Spannung Vds: 30V rohsCompliant: YES Dauer-Drainstrom Id: 38.3A hazardous: false rohsPhthalatesCompliant: YES Qualifikation: - MSL: MSL 1 - unbegrenzt usEccn: EAR99 Gate-Source-Schwellenspannung, max.: 1.2V euEccn: NLR Verlustleistung: 19.8W Bauform - Transistor: PowerPAK 1212 Anzahl der Pins: 8Pin(s) Produktpalette: - productTraceability: Yes-Date/Lot Code Kanaltyp: n-Kanal Rds(on)-Prüfspannung: 10V Betriebstemperatur, max.: 150°C Drain-Source-Durchgangswiderstand: 0.006ohm SVHC: Lead (07-Nov-2024) |
auf Bestellung 10807 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
![]() |
SISA18ADN-T1-GE3 Produktcode: 117652
zu Favoriten hinzufügen
Lieblingsprodukt
|
![]() |
Produkt ist nicht verfügbar
|
||||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : Vishay |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||
![]() |
SISA18ADN-T1-GE3 | Hersteller : Vishay |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||
SISA18ADN-T1-GE3 | Hersteller : VISHAY |
![]() Description: Transistor: N-MOSFET; TrenchFET®; unipolar; 30V; 30.6A; Idm: 70A Type of transistor: N-MOSFET Technology: TrenchFET® Polarisation: unipolar Drain-source voltage: 30V Drain current: 30.6A Pulsed drain current: 70A Power dissipation: 12.7W Case: PowerPAK® 1212-8 Gate-source voltage: -16...20V On-state resistance: 12mΩ Mounting: SMD Gate charge: 21.5nC Kind of package: reel; tape Kind of channel: enhancement Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||||||||||||||
SISA18ADN-T1-GE3 | Hersteller : VISHAY |
![]() Description: Transistor: N-MOSFET; TrenchFET®; unipolar; 30V; 30.6A; Idm: 70A Type of transistor: N-MOSFET Technology: TrenchFET® Polarisation: unipolar Drain-source voltage: 30V Drain current: 30.6A Pulsed drain current: 70A Power dissipation: 12.7W Case: PowerPAK® 1212-8 Gate-source voltage: -16...20V On-state resistance: 12mΩ Mounting: SMD Gate charge: 21.5nC Kind of package: reel; tape Kind of channel: enhancement |
Produkt ist nicht verfügbar |
