Produkte > INGUN > SKS-465 303 230 A 9002 MF

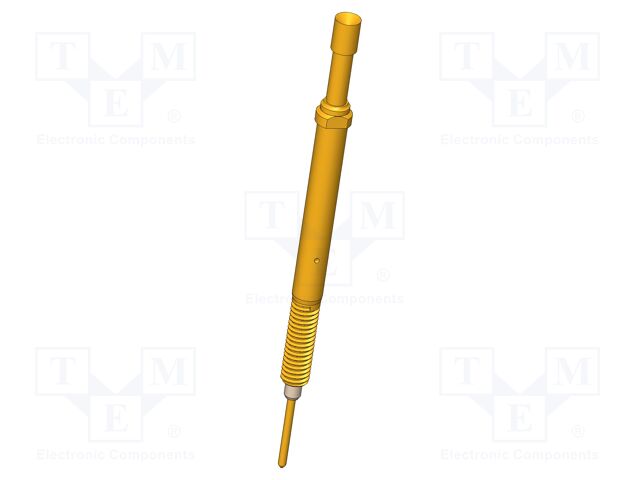

SKS-465 303 230 A 9002 MF

SKS-465 303 230 A 9002 MF INGUN

SKS-465-0171.pdf
Hersteller: INGUN
Category: Test Probes
Description: Test acces: test needle; Maksimum spring compression: 5.2mm
Contact plating: gold-plated
Blade tip shape: cone; inverted
Spring compression force: 4.5N
Type of test accessories: test needle
Maksimum spring compression: 5.2mm
Mounting: screw-in
Contact material: CuBe
Manufacturer series: SKS-465
Current rating: 3A
Operating temperature: -40...80°C
Length: 44.8mm
Test accessories features: magnetic
Tip diameter: 2.3mm
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details SKS-465 303 230 A 9002 MF INGUN

Category: Test Probes, Description: Test acces: test needle; Maksimum spring compression: 5.2mm, Contact plating: gold-plated, Blade tip shape: cone; inverted, Spring compression force: 4.5N, Type of test accessories: test needle, Maksimum spring compression: 5.2mm, Mounting: screw-in, Contact material: CuBe, Manufacturer series: SKS-465, Current rating: 3A, Operating temperature: -40...80°C, Length: 44.8mm, Test accessories features: magnetic, Tip diameter: 2.3mm.
