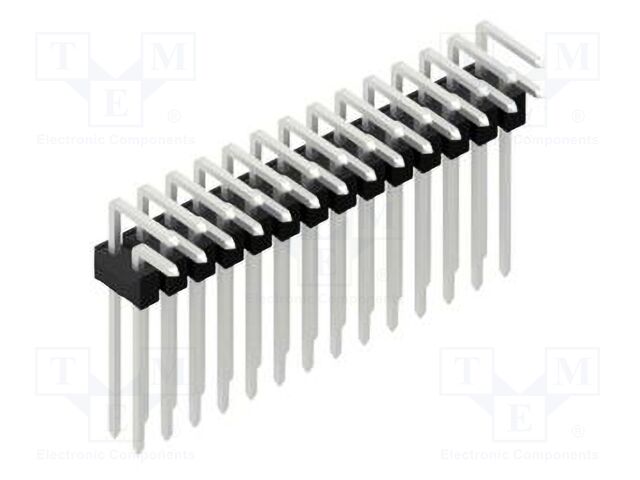

SL 19 132 28 Z Fischer Elektronik
Hersteller: Fischer ElektronikDescription: Insertion side, dimension "C" ch
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 28
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 163°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Tin
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 157.5 ~ 236.2µin (4.00 ~ 6.00µm)
Contact Finish - Post: Tin
Contact Shape: Square
Shrouding: Unshrouded
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.110" (2.80mm)
Contact Length - Mating: 0.520" (13.20mm)
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 2.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SL 19 132 28 Z Fischer Elektronik
Description: Insertion side, dimension "C" ch, Packaging: Bulk, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 28, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 163°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Tin, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 157.5 ~ 236.2µin (4.00 ~ 6.00µm), Contact Finish - Post: Tin, Contact Shape: Square, Shrouding: Unshrouded, Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Post: 0.118" (3.00mm), Insulation Height: 0.110" (2.80mm), Contact Length - Mating: 0.520" (13.20mm).
Weitere Produktangebote SL 19 132 28 Z
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| SL 19 132 28 Z | Hersteller : Fischer Elektronik |
SL 19 132 28 Z |
Produkt ist nicht verfügbar |
||
 |
SL1913228Z | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 28; 3A; 250V; THT; 2x14 Type of connector: pin strips Connector: pin header Kind of connector: male Number of pins: 28 Current rating: 3A Rated voltage: 250V Electrical mounting: THT Contacts pitch: 2.54mm Connector pinout layout: 2x14 Contact plating: tinned Kind of package: bulk Flammability rating: UL94V-0 Contact material: bronze Body material: polyamide 46 Overall length: 20.34mm Body colour: black Operating temperature: -40...163°C Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|
|
|
SL1913228Z | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 28; 3A; 250V; THT; 2x14 Type of connector: pin strips Connector: pin header Kind of connector: male Number of pins: 28 Current rating: 3A Rated voltage: 250V Electrical mounting: THT Contacts pitch: 2.54mm Connector pinout layout: 2x14 Contact plating: tinned Kind of package: bulk Flammability rating: UL94V-0 Contact material: bronze Body material: polyamide 46 Overall length: 20.34mm Body colour: black Operating temperature: -40...163°C |
Produkt ist nicht verfügbar |
