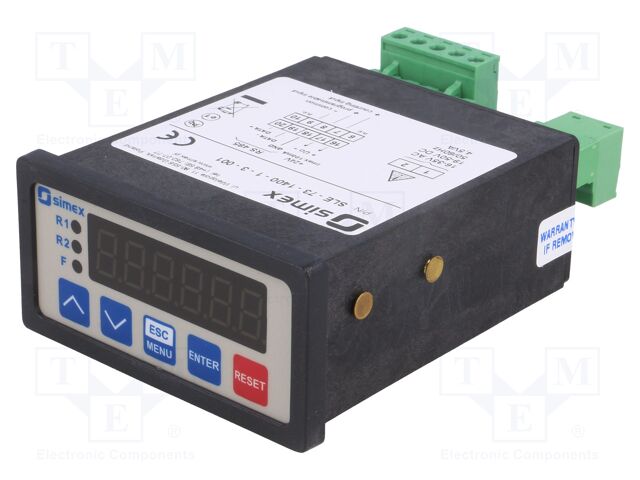

SLE-73-1400-1-3-01 SIMEX
Hersteller: SIMEX
Category: Impulse Counters
Description: Counter: electronical; LED; pulses; 999999; supply; IP65; 19÷50VDC
IP rating: IP65
Electrical connection: screw pin
Supply voltage: 16...35V AC; 19...50V DC
Operating temperature: 0...50°C
Mounting: on panel
Body dimensions: 72x36x92mm
Kind of output 1: supply
Mounting hole diameter: 66.5x32.5mm
Electrical input 1 parameters: high level: 10...30V; low level: 0...1V
Display height 1: 9mm
Resetting method: electrical; locking possibility; manual
Kind of input 2: contact; PNP; programmable
Max IN1 counting frequency: 3kHz
Kind of input 1: contact; PNP
Kind of display used: LED
Type of counter: electronical
Type of counted signal: pulses
Kind of counter: progressive/reversing; with access lock
Output 1 electrical parameters: 24V DC / 100mA
Counting range: 999999
Electrical input 2 parameters: high level: 10...30V; low level: 0...1V
Category: Impulse Counters
Description: Counter: electronical; LED; pulses; 999999; supply; IP65; 19÷50VDC
IP rating: IP65
Electrical connection: screw pin
Supply voltage: 16...35V AC; 19...50V DC
Operating temperature: 0...50°C
Mounting: on panel
Body dimensions: 72x36x92mm
Kind of output 1: supply
Mounting hole diameter: 66.5x32.5mm
Electrical input 1 parameters: high level: 10...30V; low level: 0...1V
Display height 1: 9mm
Resetting method: electrical; locking possibility; manual
Kind of input 2: contact; PNP; programmable
Max IN1 counting frequency: 3kHz
Kind of input 1: contact; PNP
Kind of display used: LED
Type of counter: electronical
Type of counted signal: pulses
Kind of counter: progressive/reversing; with access lock
Output 1 electrical parameters: 24V DC / 100mA
Counting range: 999999
Electrical input 2 parameters: high level: 10...30V; low level: 0...1V
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 181.4 EUR |
3+ | 174.43 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SLE-73-1400-1-3-01 SIMEX
Category: Impulse Counters, Description: Counter: electronical; LED; pulses; 999999; supply; IP65; 19÷50VDC, IP rating: IP65, Electrical connection: screw pin, Supply voltage: 16...35V AC; 19...50V DC, Operating temperature: 0...50°C, Mounting: on panel, Body dimensions: 72x36x92mm, Kind of output 1: supply, Mounting hole diameter: 66.5x32.5mm, Electrical input 1 parameters: high level: 10...30V; low level: 0...1V, Display height 1: 9mm, Resetting method: electrical; locking possibility; manual, Kind of input 2: contact; PNP; programmable, Max IN1 counting frequency: 3kHz, Kind of input 1: contact; PNP, Kind of display used: LED, Type of counter: electronical, Type of counted signal: pulses, Kind of counter: progressive/reversing; with access lock, Output 1 electrical parameters: 24V DC / 100mA, Counting range: 999999, Electrical input 2 parameters: high level: 10...30V; low level: 0...1V, Anzahl je Verpackung: 1 Stücke.
