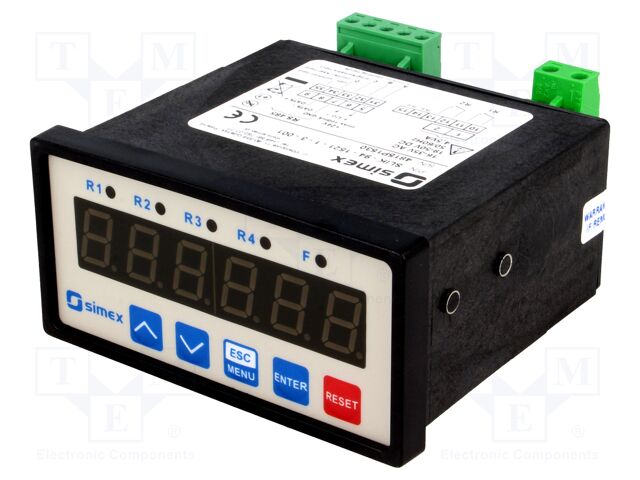

SLIK-94-1521-1-3-001 SIMEX

Category: Impulse Counters, Description: Counter: electronical; LED; pulses; -99999÷999999; supply; IP64, Type of counter: electronical, Kind of display used: LED, Type of counted signal: pulses, Counting range: -99999...999999, Resetting method: electrical; locking possibility; manual, IP rating: IP64, Kind of input 1: contact; voltage, Electrical input 1 parameters: high level: 10...30V; low level: 0...3V, Kind of input 2: contact; voltage, Electrical input 2 parameters: high level: 10...30V; low level: 0...1V, Max IN1 counting frequency: 10kHz, Operating temperature: 0...50°C, Body dimensions: 96x48x92mm, Display height 1: 13mm, Mounting hole diameter: 90.5x43mm, Electrical connection: screw terminals, Mounting: on panel, Kind of counter: progressive/reversing; with access lock, IN2 max counting frequency: 10kHz, Output 2 electrical parameters: 250V AC / 1A, Output 3 electrical parameters: 250V AC / 1A, Output 1 electrical parameters: 24V DC / 100mA, Kind of output 1: supply, Kind of output 2: SPST-NO, Kind of output 3: SPST-NO, Supply voltage: 16...35V AC; 19...50V DC, Kind of input 3: programmable, Anzahl je Verpackung: 1 Stücke.
