Hersteller: Fischer Elektronik
Description: one row, wide isolation body, 4-
Packaging: Bulk
Connector Type: Header
Voltage Rating: 125VAC
Current Rating (Amps): 1.5A
Mounting Type: Surface Mount
Number of Positions: 7
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 163°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Zinc
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 157.5µin (4.00µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.067" (1.70mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Length - Mating: 0.118" (3.00mm)

Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

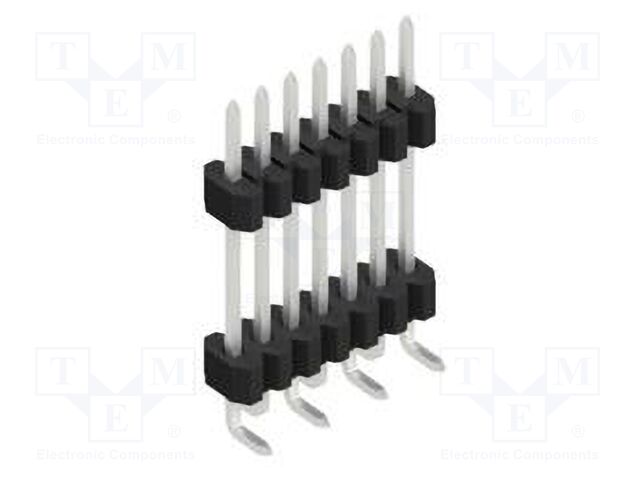

Description: Connector: pin strips; pin header; male; PIN: 7; SMT; 1.5A; 125V
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 7
Electrical mounting: SMT
Current rating: 1.5A
Rated voltage: 125V
Spatial orientation: angled
Contacts pitch: 1.27mm
Connector pinout layout: 1x7
Contact plating: tinned
Kind of package: bulk
Flammability rating: UL94V-0
Contact material: brass
Body material: polyamide 46
Overall length: 13.2mm
Body colour: black
Operating temperature: -40...163°C
