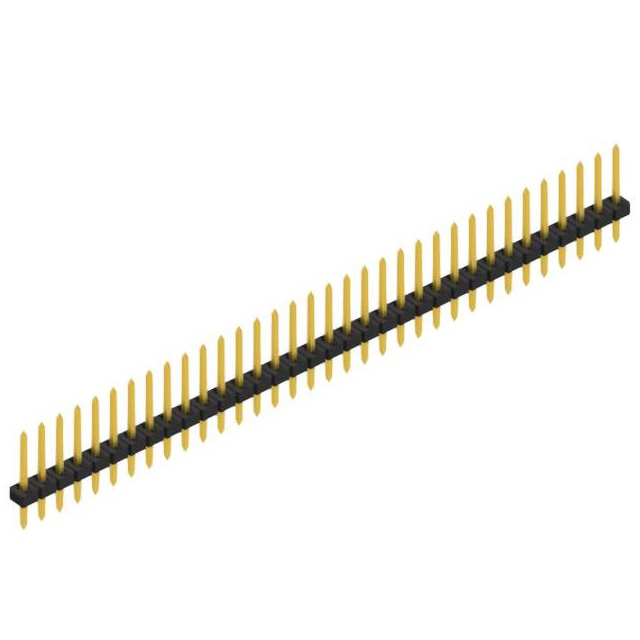

Hersteller: Fischer Elektronik
Description: 0.5 MM, STRAIGHT
Packaging: Bulk
Connector Type: Header
Voltage Rating: 100VDC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 163°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Tin
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 7.87µin (0.200µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.409" (10.40mm)
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Length - Mating: 0.232" (5.90mm)

Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 34; THT; 3A; 100V; 2mm
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 34
Electrical mounting: THT
Current rating: 3A
Rated voltage: 100V
Manufacturer series: SLY 1
Spatial orientation: straight
Contacts pitch: 2mm
Connector pinout layout: 1x34
Contact plating: gold-plated
Kind of package: bulk
Flammability rating: UL94V-0
Contact material: bronze
Body material: polyamide 46
Overall length: 10.4mm
Body colour: black
Operating temperature: -40...163°C
