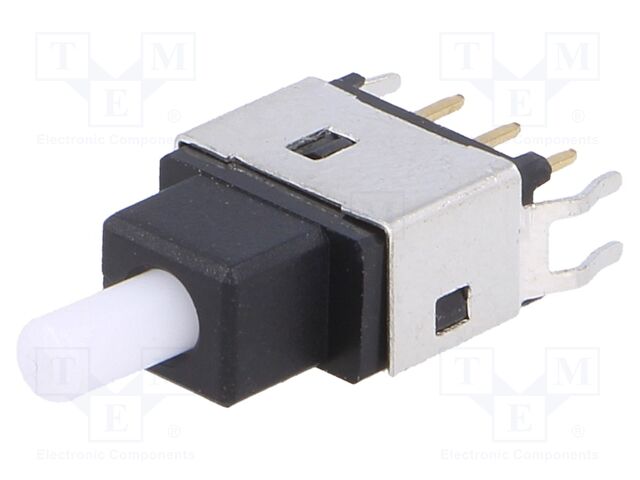

SP-12SB SUNGMUN ELECTRONICS
Hersteller: SUNGMUN ELECTRONICS
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPDT; 0.4A/28VAC; 0.4A/28VDC; ON-(ON)
Operating temperature: -25...80°C
Mounting: THT
Switching method: ON-(ON)
Type of switch: push-button
Button shape: round
Contacts configuration: SPDT
Terminal pitch: 2.54mm
Body dimensions: 9.8x5.8x13.1mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 0.4A / 28V AC
DC contacts rating @R: 0.4A / 28V DC
Stable positions number: 1
Number of positions: 2
Operating Force: 2.45N
Min. insulation resistance: 500MΩ
Leads: for PCB
Manufacturer series: SP
| Anzahl | Preis |
|---|---|
| 53+ | 1.36 EUR |
| 59+ | 1.23 EUR |
| 100+ | 1.1 EUR |
| 250+ | 0.99 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SP-12SB SUNGMUN ELECTRONICS
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPDT; 0.4A/28VAC; 0.4A/28VDC; ON-(ON), Operating temperature: -25...80°C, Mounting: THT, Switching method: ON-(ON), Type of switch: push-button, Button shape: round, Contacts configuration: SPDT, Terminal pitch: 2.54mm, Body dimensions: 9.8x5.8x13.1mm, Max. contact resistance:: 50mΩ, AC contacts rating @R: 0.4A / 28V AC, DC contacts rating @R: 0.4A / 28V DC, Stable positions number: 1, Number of positions: 2, Operating Force: 2.45N, Min. insulation resistance: 500MΩ, Leads: for PCB, Manufacturer series: SP.
