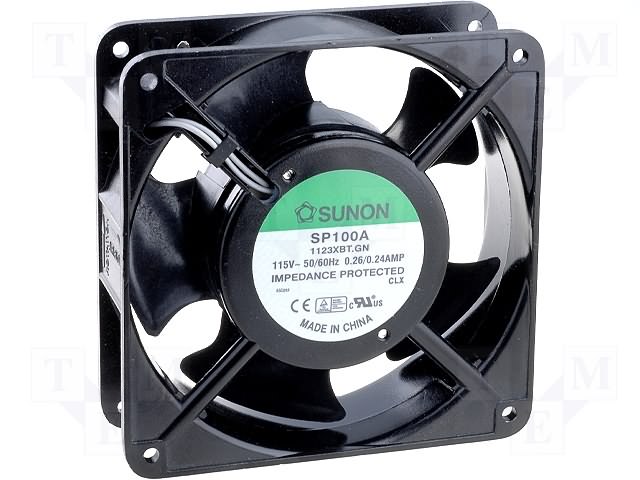

SP100A1123XBT.GN SUNON
Hersteller: SUNONCategory: AC115V Fans
Description: Fan: AC; axial; 115VAC; 120x120x38mm; 199m3/h(±10%); 50dBA; 3150rpm
Type of fan: AC
Kind of fan: axial
Supply voltage: 115V AC
Fan dimensions: 120x120x38mm
Power consumption: 20W
Current rating: 0.24A
Fan efficiency: 199m3/h (±10%)
Noise level: 50dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 3150rpm
Current and power consumption tolerance: ±15%
Frequency: 60Hz
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: aluminium
Leads: connectors 2,8x0,3mm
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 9.9mm H2O
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1164 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 7+ | 10.72 EUR |
| 10+ | 9.38 EUR |
| 40+ | 8.84 EUR |
| 240+ | 8.77 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SP100A1123XBT.GN SUNON
Category: AC115V Fans, Description: Fan: AC; axial; 115VAC; 120x120x38mm; 199m3/h(±10%); 50dBA; 3150rpm, Type of fan: AC, Kind of fan: axial, Supply voltage: 115V AC, Fan dimensions: 120x120x38mm, Power consumption: 20W, Current rating: 0.24A, Fan efficiency: 199m3/h (±10%), Noise level: 50dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 3150rpm, Current and power consumption tolerance: ±15%, Frequency: 60Hz, Min. insulation resistance: 500MΩ, Impeller material: thermoplastic, Enclosure material: aluminium, Leads: connectors 2,8x0,3mm, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 9.9mm H2O, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote SP100A1123XBT.GN nach Preis ab 8.77 EUR bis 52.31 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SP100A1123XBT.GN | Hersteller : SUNON |
Category: AC115V Fans Description: Fan: AC; axial; 115VAC; 120x120x38mm; 199m3/h(±10%); 50dBA; 3150rpm Type of fan: AC Kind of fan: axial Supply voltage: 115V AC Fan dimensions: 120x120x38mm Power consumption: 20W Current rating: 0.24A Fan efficiency: 199m3/h (±10%) Noise level: 50dBA Kind of Bearing: ball bearing Rotational rate/speed: 3150rpm Current and power consumption tolerance: ±15% Frequency: 60Hz Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: aluminium Leads: connectors 2,8x0,3mm Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 9.9mm H2O |
auf Bestellung 1164 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
SP100A-1123XBT.GN | Hersteller : Sunon Fans |
Description: FAN AXIAL 120X38MM 115VAC TERM Packaging: Bulk Power (Watts): 20.00W Voltage - Rated: 115VAC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 3150 RPM Air Flow: 117.0 CFM (3.28m³/min) Width: 38.00mm Weight: 1.2 lbs (550 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Terminals Approval Agency: CE, CSA, TUV, UL Fan Type: Tubeaxial Noise: 50.0dB(A) Static Pressure: 0.390 in H2O (97.1 Pa) Part Status: Active |
auf Bestellung 10338 Stücke: Lieferzeit 21-28 Tag (e) |
|
||||||||||||||||
 |
SP100A-1123XBT.GN | Hersteller : Sunon |
AC Fans Axial Fan, 120x120x38mm, 115VAC, 97/117CFM, 0.34/0.39"H2O, Ball, Terminals |
auf Bestellung 1137 Stücke: Lieferzeit 14-28 Tag (e) |
|
||||||||||||||||
| SP100A/1123XBT.GN | Hersteller : Sunon | AC Fan Axial Ball Bearing 115V 97CFM/117CFM 45dB/50dB 119 X 119 X 38.5mm Super High Speed |
auf Bestellung 1220 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
| SP100A/1123XBT.GN | Hersteller : Sunon | AC Fan Axial Ball Bearing 115V 97CFM/117CFM 45dB/50dB 119 X 119 X 38.5mm Super High Speed |
auf Bestellung 896 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
 |
SP100A1123XBT Produktcode: 46563 |
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 120x120x38 Spannung, V: 115 AC Luftvolumen, m3/Stunde: 199 Leistung, Watt: 20 Lärm, dB: 50 Rotationsgeschwindigkeit, r/min: 3150 Beschreibung: Lager roll-on- |
Produkt ist nicht verfügbar
|
|||||||||||||||||
 |
SP100A-1123XBT | Hersteller : Sunon Fans |
Description: FAN AXIAL 120X38MM 115VAC TERM Power (Watts): 20.00W Voltage - Rated: 115VAC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 3150 RPM Air Flow: 117.0 CFM (3.28m³/min) Width: 38.00mm Weight: 1.2 lbs (550 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Terminals Approval Agency: CE, CSA, TUV, UL Fan Type: Tubeaxial Noise: 50.0dB(A) Static Pressure: 0.390 in H2O (97.1 Pa) |
Produkt ist nicht verfügbar |
|||||||||||||||||
| SP100A-1123XBT | Hersteller : Sunon |
Sunon |
Produkt ist nicht verfügbar |
||||||||||||||||||
 |
SP100A/1123XBT.GN | Hersteller : Sunon |
AC Fan Axial Ball Bearing 115V 97CFM/117CFM 45dB/50dB 119 X 119 X 38.5mm Super High Speed |
Produkt ist nicht verfügbar |
