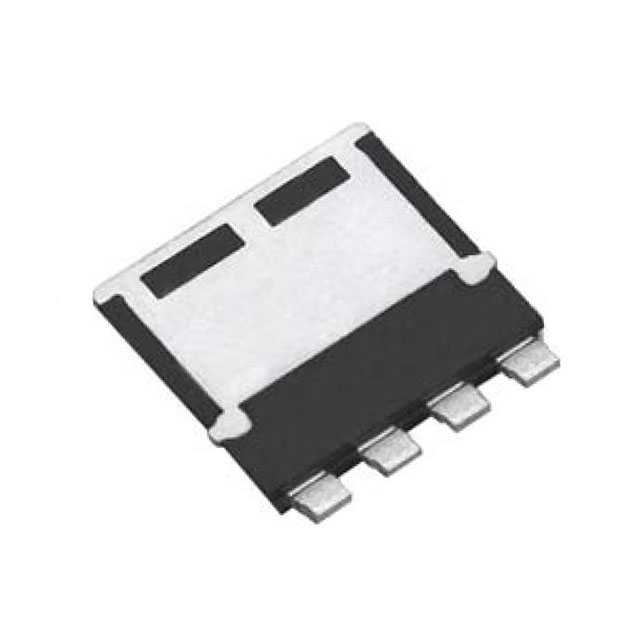

SQJQ410EL-T1_GE3 Vishay Siliconix

Description: MOSFET N-CH 100V 135A PPAK 8 X 8
Packaging: Cut Tape (CT)
Package / Case: PowerPAK® 8 x 8
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 135A (Tc)
Rds On (Max) @ Id, Vgs: 3.4mOhm @ 20A, 10V
Power Dissipation (Max): 136W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: PowerPAK® 8 x 8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 150 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 7350 pF @ 25 V
Grade: Automotive
Qualification: AEC-Q101
auf Bestellung 318 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis |
---|---|
4+ | 4.73 EUR |
10+ | 3.98 EUR |
100+ | 3.22 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SQJQ410EL-T1_GE3 Vishay Siliconix
Description: MOSFET N-CH 100V 135A PPAK 8 X 8, Packaging: Tape & Reel (TR), Package / Case: PowerPAK® 8 x 8, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 135A (Tc), Rds On (Max) @ Id, Vgs: 3.4mOhm @ 20A, 10V, Power Dissipation (Max): 136W (Tc), Vgs(th) (Max) @ Id: 2.5V @ 250µA, Supplier Device Package: PowerPAK® 8 x 8, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 100 V, Gate Charge (Qg) (Max) @ Vgs: 150 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 7350 pF @ 25 V, Grade: Automotive, Qualification: AEC-Q101.
Weitere Produktangebote SQJQ410EL-T1_GE3 nach Preis ab 2.36 EUR bis 5.61 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
SQJQ410EL-T1_GE3 | Hersteller : Vishay / Siliconix |
![]() |
auf Bestellung 19488 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
SQJQ410EL-T1_GE3 | Hersteller : VISHAY |
![]() tariffCode: 85412900 Transistormontage: Oberflächenmontage Drain-Source-Spannung Vds: 100V rohsCompliant: YES Dauer-Drainstrom Id: 135A hazardous: false rohsPhthalatesCompliant: YES Qualifikation: AEC-Q101 usEccn: EAR99 Gate-Source-Schwellenspannung, max.: 2V euEccn: NLR Verlustleistung: 136W Bauform - Transistor: PowerPAK Anzahl der Pins: 8Pin(s) Produktpalette: TrenchFET productTraceability: Yes-Date/Lot Code Kanaltyp: n-Kanal Rds(on)-Prüfspannung: 10V Betriebstemperatur, max.: 175°C Drain-Source-Durchgangswiderstand: 0.0028ohm SVHC: No SVHC (07-Nov-2024) |
auf Bestellung 3126 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
![]() |
SQJQ410EL-T1_GE3 | Hersteller : VISHAY |
![]() tariffCode: 85412900 Transistormontage: Oberflächenmontage Drain-Source-Spannung Vds: 100V rohsCompliant: YES Dauer-Drainstrom Id: 135A hazardous: false rohsPhthalatesCompliant: YES Qualifikation: AEC-Q101 usEccn: EAR99 Gate-Source-Schwellenspannung, max.: 2V euEccn: NLR Verlustleistung: 136W Bauform - Transistor: PowerPAK Anzahl der Pins: 8Pin(s) Produktpalette: TrenchFET productTraceability: Yes-Date/Lot Code Kanaltyp: n-Kanal Rds(on)-Prüfspannung: 10V Betriebstemperatur, max.: 175°C Drain-Source-Durchgangswiderstand: 0.0028ohm SVHC: No SVHC (07-Nov-2024) |
auf Bestellung 3126 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
![]() |
SQJQ410EL-T1_GE3 | Hersteller : Vishay |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
SQJQ410EL-T1_GE3 | Hersteller : Vishay Siliconix |
![]() Packaging: Tape & Reel (TR) Package / Case: PowerPAK® 8 x 8 Mounting Type: Surface Mount Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 135A (Tc) Rds On (Max) @ Id, Vgs: 3.4mOhm @ 20A, 10V Power Dissipation (Max): 136W (Tc) Vgs(th) (Max) @ Id: 2.5V @ 250µA Supplier Device Package: PowerPAK® 8 x 8 Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 100 V Gate Charge (Qg) (Max) @ Vgs: 150 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 7350 pF @ 25 V Grade: Automotive Qualification: AEC-Q101 |
Produkt ist nicht verfügbar |
