SSM6K518NU,LF Toshiba Semiconductor and Storage
Hersteller: Toshiba Semiconductor and Storage
Description: MOSFET N-CH 20V 6A 6UDFNB
Mounting Type: Surface Mount

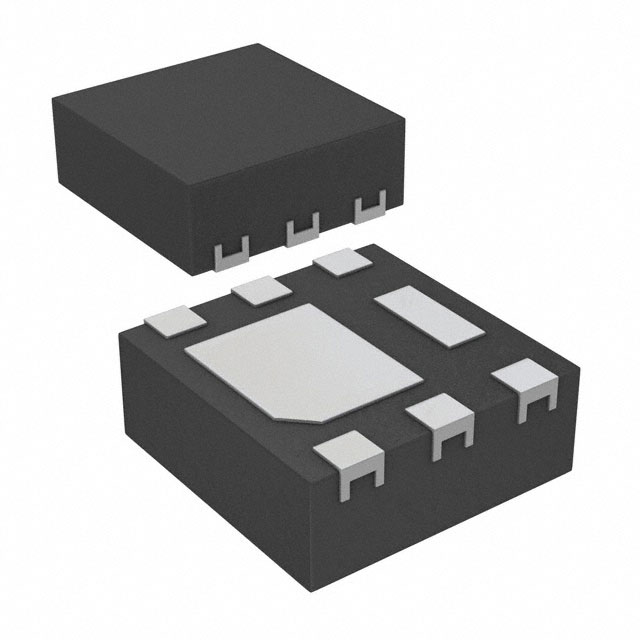

Package / Case: 6-WDFN Exposed Pad
Packaging: Tape & Reel (TR)
Input Capacitance (Ciss) (Max) @ Vds: 410 pF @ 10 V
Gate Charge (Qg) (Max) @ Vgs: 3.6 nC @ 4.5 V
Drain to Source Voltage (Vdss): 20 V
Vgs (Max): ±8V
Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
Part Status: Active
Supplier Device Package: 6-UDFNB (2x2)
Vgs(th) (Max) @ Id: 1V @ 1mA
Power Dissipation (Max): 1.25W (Ta)
Rds On (Max) @ Id, Vgs: 33mOhm @ 4A, 4.5V
Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: 150°C
Produktrezensionen
Produktbewertung abgeben
Technische Details SSM6K518NU,LF Toshiba Semiconductor and Storage
Description: MOSFET N-CH 20V 6A 6UDFNB, Mounting Type: Surface Mount, Package / Case: 6-WDFN Exposed Pad, Packaging: Tape & Reel (TR), Input Capacitance (Ciss) (Max) @ Vds: 410 pF @ 10 V, Gate Charge (Qg) (Max) @ Vgs: 3.6 nC @ 4.5 V, Drain to Source Voltage (Vdss): 20 V, Vgs (Max): ±8V, Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V, Part Status: Active, Supplier Device Package: 6-UDFNB (2x2), Vgs(th) (Max) @ Id: 1V @ 1mA, Power Dissipation (Max): 1.25W (Ta), Rds On (Max) @ Id, Vgs: 33mOhm @ 4A, 4.5V, Current - Continuous Drain (Id) @ 25°C: 6A (Ta), FET Type: N-Channel, Technology: MOSFET (Metal Oxide), Operating Temperature: 150°C.
Weitere Produktangebote SSM6K518NU,LF nach Preis ab 0.23 EUR bis 0.83 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SSM6K518NU,LF | Toshiba |
 MOSFETs 30V/20V Nch single MOSFET Id: 6A Rdson: 40mOhm a. 1.8V |
auf Bestellung 5669 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
|
|
SSM6K518NU,LF | Toshiba Semiconductor and Storage |
Description: MOSFET N-CH 20V 6A 6UDFNB Input Capacitance (Ciss) (Max) @ Vds: 410 pF @ 10 V Gate Charge (Qg) (Max) @ Vgs: 3.6 nC @ 4.5 V Drain to Source Voltage (Vdss): 20 V Vgs (Max): ±8V Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V Part Status: Active Supplier Device Package: 6-UDFNB (2x2) Vgs(th) (Max) @ Id: 1V @ 1mA Power Dissipation (Max): 1.25W (Ta) Rds On (Max) @ Id, Vgs: 33mOhm @ 4A, 4.5V Current - Continuous Drain (Id) @ 25°C: 6A (Ta) FET Type: N-Channel Technology: MOSFET (Metal Oxide) Operating Temperature: 150°C Mounting Type: Surface Mount Package / Case: 6-WDFN Exposed Pad Packaging: Cut Tape (CT) |
auf Bestellung 6148 Stücke: Lieferzeit 10-14 Tag (e) |
|
| SSM6K518NU,LF |
|
Hersteller: Toshiba
MOSFETs 30V/20V Nch single MOSFET Id: 6A Rdson: 40mOhm a. 1.8V
MOSFETs 30V/20V Nch single MOSFET Id: 6A Rdson: 40mOhm a. 1.8V
auf Bestellung 5669 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 7+ | 0.52 EUR |
| 10+ | 0.43 EUR |
| 100+ | 0.3 EUR |
| 500+ | 0.24 EUR |
| 1000+ | 0.23 EUR |
| SSM6K518NU,LF |
Hersteller: Toshiba Semiconductor and Storage
Description: MOSFET N-CH 20V 6A 6UDFNB
Input Capacitance (Ciss) (Max) @ Vds: 410 pF @ 10 V
Gate Charge (Qg) (Max) @ Vgs: 3.6 nC @ 4.5 V
Drain to Source Voltage (Vdss): 20 V
Vgs (Max): ±8V
Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
Part Status: Active
Supplier Device Package: 6-UDFNB (2x2)
Vgs(th) (Max) @ Id: 1V @ 1mA
Power Dissipation (Max): 1.25W (Ta)
Rds On (Max) @ Id, Vgs: 33mOhm @ 4A, 4.5V
Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: 150°C
Mounting Type: Surface Mount
Package / Case: 6-WDFN Exposed Pad
Packaging: Cut Tape (CT)
Description: MOSFET N-CH 20V 6A 6UDFNB
Input Capacitance (Ciss) (Max) @ Vds: 410 pF @ 10 V
Gate Charge (Qg) (Max) @ Vgs: 3.6 nC @ 4.5 V
Drain to Source Voltage (Vdss): 20 V
Vgs (Max): ±8V
Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
Part Status: Active
Supplier Device Package: 6-UDFNB (2x2)
Vgs(th) (Max) @ Id: 1V @ 1mA
Power Dissipation (Max): 1.25W (Ta)
Rds On (Max) @ Id, Vgs: 33mOhm @ 4A, 4.5V
Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: 150°C
Mounting Type: Surface Mount
Package / Case: 6-WDFN Exposed Pad
Packaging: Cut Tape (CT)
auf Bestellung 6148 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 25+ | 0.83 EUR |
| 30+ | 0.71 EUR |
| 100+ | 0.5 EUR |
| 500+ | 0.38 EUR |
| 1000+ | 0.31 EUR |
