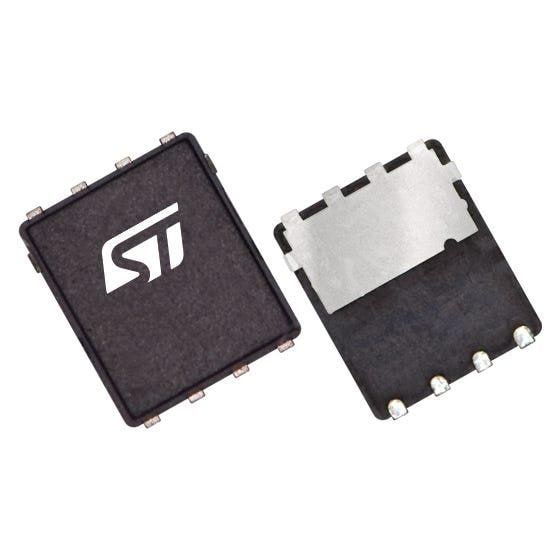

STL64N4F7AG STMicroelectronics
Hersteller: STMicroelectronicsDescription: DISCRETE
Packaging: Bulk
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount, Wettable Flank
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 64A (Tc)
Rds On (Max) @ Id, Vgs: 8.5mOhm @ 32A, 10V
Power Dissipation (Max): 65W (Tc)
Vgs(th) (Max) @ Id: 4V @ 250µA
Supplier Device Package: PowerFlat™ (5x6)
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 9.8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 637 pF @ 25 V
Qualification: AEC-Q101
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details STL64N4F7AG STMicroelectronics
Description: DISCRETE, Packaging: Bulk, Package / Case: 8-PowerVDFN, Mounting Type: Surface Mount, Wettable Flank, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 64A (Tc), Rds On (Max) @ Id, Vgs: 8.5mOhm @ 32A, 10V, Power Dissipation (Max): 65W (Tc), Vgs(th) (Max) @ Id: 4V @ 250µA, Supplier Device Package: PowerFlat™ (5x6), Grade: Automotive, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 40 V, Gate Charge (Qg) (Max) @ Vgs: 9.8 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 637 pF @ 25 V, Qualification: AEC-Q101.
Weitere Produktangebote STL64N4F7AG
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
STL64N4F7AG | Hersteller : STMicroelectronics |
MOSFETs Automotive-grade N-channel 40 V, 7.0 mOhm typ., 64 A STripFET F7 Power MOSFET in |
Produkt ist nicht verfügbar |
|
| STL64N4F7AG | Hersteller : STMicroelectronics |
Category: SMD N channel transistors Description: Transistor: N-MOSFET; unipolar; 40V; 64A; Idm: 256A; 65W Type of transistor: N-MOSFET Polarisation: unipolar Drain-source voltage: 40V Drain current: 64A Power dissipation: 65W Case: PowerFLAT 5x6 On-state resistance: 8.5mΩ Mounting: SMD Gate charge: 9.8nC Kind of channel: enhancement Pulsed drain current: 256A Kind of package: reel; tape Gate-source voltage: ±20V |
Produkt ist nicht verfügbar |
