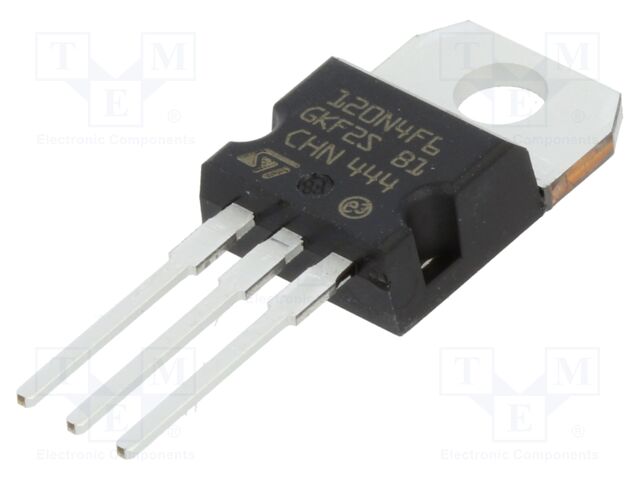

STP120N4F6 STMicroelectronics
Hersteller: STMicroelectronics
Category: THT N channel transistors
Description: Transistor: N-MOSFET; STripFET™ H6; unipolar; 40V; 80A; Idm: 320A
Mounting: THT
Technology: STripFET™ H6
Type of transistor: N-MOSFET
Case: TO220-3
Kind of package: tube
Polarisation: unipolar
Drain current: 80A
Drain-source voltage: 40V
Gate charge: 65nC
On-state resistance: 4.3mΩ
Gate-source voltage: ±20V
Pulsed drain current: 320A
Power dissipation: 110W
Kind of channel: enhancement
Produktrezensionen
Produktbewertung abgeben
Technische Details STP120N4F6 STMicroelectronics
Description: MOSFET N-CH 40V 80A TO220AB, Packaging: Tube, Package / Case: TO-220-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 80A (Tc), Rds On (Max) @ Id, Vgs: 4.3mOhm @ 40A, 10V, Power Dissipation (Max): 110W (Tc), Vgs(th) (Max) @ Id: 4V @ 250µA, Supplier Device Package: TO-220, Grade: Automotive, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 40 V, Gate Charge (Qg) (Max) @ Vgs: 65 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 3850 pF @ 25 V, Qualification: AEC-Q101.
Weitere Produktangebote STP120N4F6 nach Preis ab 1.17 EUR bis 4.12 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
STP120N4F6 | STMicroelectronics |
MOSFETs N-Ch 40V 3.5m Ohm 80A STripFET VI |
auf Bestellung 610 Stücke: Lieferzeit 10-14 Tag (e) |
|
| STP120N4F6 |
|
Hersteller: STMicroelectronics
MOSFETs N-Ch 40V 3.5m Ohm 80A STripFET VI
MOSFETs N-Ch 40V 3.5m Ohm 80A STripFET VI
auf Bestellung 610 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 4.12 EUR |
| 10+ | 2.62 EUR |
| 100+ | 1.81 EUR |
| 500+ | 1.49 EUR |
| 1000+ | 1.27 EUR |
| 2000+ | 1.18 EUR |
| 5000+ | 1.17 EUR |
