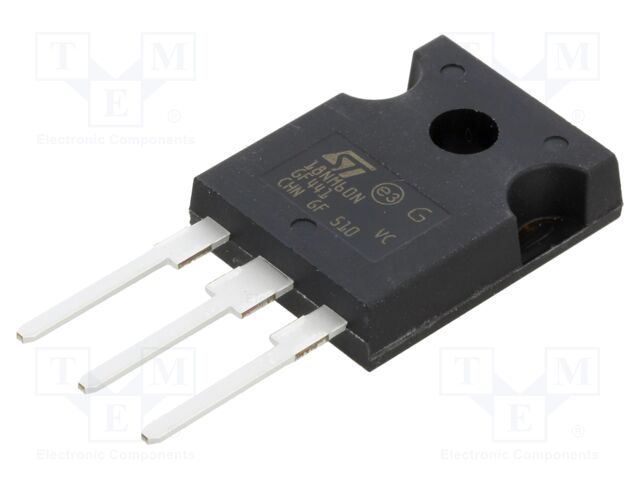

STW18NM60N STMicroelectronics
Hersteller: STMicroelectronics
Description: MOSFET N-CH 600V 13A TO247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
Rds On (Max) @ Id, Vgs: 285mOhm @ 6.5A, 10V
Power Dissipation (Max): 110W (Tc)
Vgs(th) (Max) @ Id: 4V @ 250µA
Supplier Device Package: TO-247-3
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1000 pF @ 50 V
Description: MOSFET N-CH 600V 13A TO247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
Rds On (Max) @ Id, Vgs: 285mOhm @ 6.5A, 10V
Power Dissipation (Max): 110W (Tc)
Vgs(th) (Max) @ Id: 4V @ 250µA
Supplier Device Package: TO-247-3
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1000 pF @ 50 V
auf Bestellung 535 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 10.77 EUR |
30+ | 10.68 EUR |
120+ | 9.15 EUR |
510+ | 8.14 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details STW18NM60N STMicroelectronics
Description: STMICROELECTRONICS - STW18NM60N - Leistungs-MOSFET, n-Kanal, 600 V, 13 A, 0.26 ohm, TO-247, Durchsteckmontage, tariffCode: 85412900, Transistormontage: Durchsteckmontage, Drain-Source-Spannung Vds: 600V, rohsCompliant: YES, Dauer-Drainstrom Id: 13A, hazardous: false, rohsPhthalatesCompliant: YES, Qualifikation: -, usEccn: EAR99, Verlustleistung Pd: 110W, Gate-Source-Schwellenspannung, max.: 3V, euEccn: NLR, Verlustleistung: 110W, Bauform - Transistor: TO-247, Anzahl der Pins: 3Pin(s), Produktpalette: -, productTraceability: No, Wandlerpolarität: n-Kanal, Kanaltyp: n-Kanal, Betriebswiderstand, Rds(on): 0.26ohm, Rds(on)-Prüfspannung: 10V, Betriebstemperatur, max.: 150°C, Drain-Source-Durchgangswiderstand: 0.26ohm, SVHC: No SVHC (17-Dec-2015).
Weitere Produktangebote STW18NM60N
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
STW18NM60N | Hersteller : STMICROELECTRONICS |
Description: STMICROELECTRONICS - STW18NM60N - Leistungs-MOSFET, n-Kanal, 600 V, 13 A, 0.26 ohm, TO-247, Durchsteckmontage tariffCode: 85412900 Transistormontage: Durchsteckmontage Drain-Source-Spannung Vds: 600V rohsCompliant: YES Dauer-Drainstrom Id: 13A hazardous: false rohsPhthalatesCompliant: YES Qualifikation: - usEccn: EAR99 Verlustleistung Pd: 110W Gate-Source-Schwellenspannung, max.: 3V euEccn: NLR Verlustleistung: 110W Bauform - Transistor: TO-247 Anzahl der Pins: 3Pin(s) Produktpalette: - productTraceability: No Wandlerpolarität: n-Kanal Kanaltyp: n-Kanal Betriebswiderstand, Rds(on): 0.26ohm Rds(on)-Prüfspannung: 10V Betriebstemperatur, max.: 150°C Drain-Source-Durchgangswiderstand: 0.26ohm SVHC: No SVHC (17-Dec-2015) |
auf Bestellung 35 Stücke: Lieferzeit 14-21 Tag (e) |
||
STW18NM60N | Hersteller : STMicroelectronics | Trans MOSFET N-CH 600V 13A 3-Pin(3+Tab) TO-247 Tube |
Produkt ist nicht verfügbar |
||
STW18NM60N | Hersteller : STMicroelectronics | Trans MOSFET N-CH 600V 13A 3-Pin(3+Tab) TO-247 Tube |
Produkt ist nicht verfügbar |
||
STW18NM60N | Hersteller : STMicroelectronics |
Category: THT N channel transistors Description: Transistor: N-MOSFET; unipolar; 600V; 8.19A; Idm: 52A; 130W; TO247 Type of transistor: N-MOSFET Polarisation: unipolar Drain-source voltage: 600V Drain current: 8.19A Pulsed drain current: 52A Power dissipation: 130W Case: TO247 Gate-source voltage: ±25V On-state resistance: 0.25Ω Mounting: THT Gate charge: 34nC Kind of package: tube Kind of channel: enhanced Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||
STW18NM60N | Hersteller : STMicroelectronics | MOSFET N-channel 600 V 0.27ohms 13A Mdmesh |
Produkt ist nicht verfügbar |
||
STW18NM60N | Hersteller : STMicroelectronics |
Category: THT N channel transistors Description: Transistor: N-MOSFET; unipolar; 600V; 8.19A; Idm: 52A; 130W; TO247 Type of transistor: N-MOSFET Polarisation: unipolar Drain-source voltage: 600V Drain current: 8.19A Pulsed drain current: 52A Power dissipation: 130W Case: TO247 Gate-source voltage: ±25V On-state resistance: 0.25Ω Mounting: THT Gate charge: 34nC Kind of package: tube Kind of channel: enhanced |
Produkt ist nicht verfügbar |
