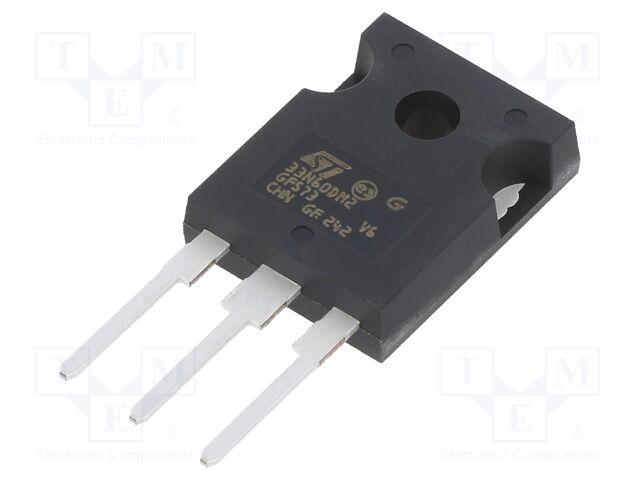

STW33N60DM2 STMicroelectronics
Hersteller: STMicroelectronics
Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 650V; 15.5A; Idm: 96A; 190W; TO247
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 650V
Drain current: 15.5A
Pulsed drain current: 96A
Power dissipation: 190W
Case: TO247
Gate-source voltage: ±25V
On-state resistance: 0.11Ω
Mounting: THT
Gate charge: 43nC
Kind of package: tube
Kind of channel: enhancement
| Anzahl | Privatkunde |
|---|---|
| 12+ | 7.29 EUR |
| 16+ | 5.59 EUR |
| 30+ | 5.03 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details STW33N60DM2 STMicroelectronics
Description: MOSFET N-CH 600V 24A TO247, Packaging: Tube, Package / Case: TO-247-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 24A (Tc), Rds On (Max) @ Id, Vgs: 130mOhm @ 12A, 10V, Power Dissipation (Max): 190W (Tc), Vgs(th) (Max) @ Id: 5V @ 250µA, Supplier Device Package: TO-247-3, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±25V, Drain to Source Voltage (Vdss): 600 V, Gate Charge (Qg) (Max) @ Vgs: 43 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 1870 pF @ 100 V.
Weitere Produktangebote STW33N60DM2 nach Preis ab 5.44 EUR bis 11.52 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
STW33N60DM2 | STMicroelectronics |
Description: MOSFET N-CH 600V 24A TO247 Packaging: Tube Package / Case: TO-247-3 Mounting Type: Through Hole Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 24A (Tc) Rds On (Max) @ Id, Vgs: 130mOhm @ 12A, 10V Power Dissipation (Max): 190W (Tc) Vgs(th) (Max) @ Id: 5V @ 250µA Supplier Device Package: TO-247-3 Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 10V Vgs (Max): ±25V Drain to Source Voltage (Vdss): 600 V Gate Charge (Qg) (Max) @ Vgs: 43 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 1870 pF @ 100 V |
auf Bestellung 508 Stücke: Lieferzeit 10-14 Tag (e) |
|
| STW33N60DM2 |
|
Hersteller: STMicroelectronics
Description: MOSFET N-CH 600V 24A TO247
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 130mOhm @ 12A, 10V
Power Dissipation (Max): 190W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-247-3
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 43 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1870 pF @ 100 V
Description: MOSFET N-CH 600V 24A TO247
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 130mOhm @ 12A, 10V
Power Dissipation (Max): 190W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-247-3
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 43 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1870 pF @ 100 V
auf Bestellung 508 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 11.52 EUR |
| 30+ | 6.53 EUR |
| 120+ | 5.44 EUR |
