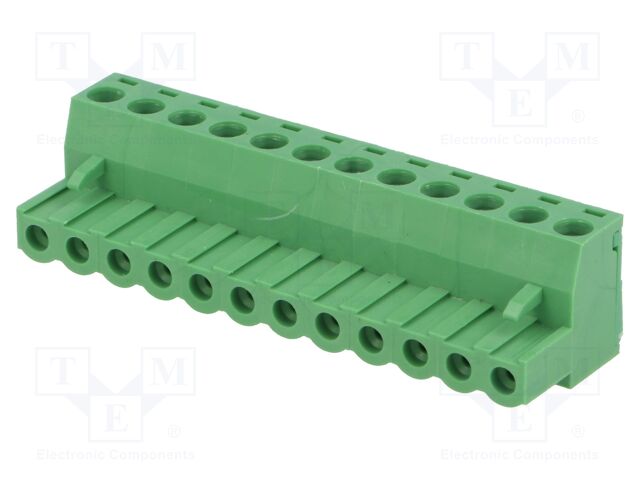

TBW-5-12P/GN NINIGI

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x12, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 15A, Rated voltage: 300V, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide, Depth: 17.7mm, Connector pinout layout: 1x12, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 12, Locking system: latch, Number of terminals: 12, Height: 15.2mm, Operating temperature: -40...105°C, Length: 60.96mm, Contact material: brass, Stripped wire length: 8mm, Anzahl je Verpackung: 1 Stücke.
