TJ1001800000G

TJ1001800000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89542474440D6&compId=TJ7.62.pdf?ci_sign=6162452e8742553f48f596338470cac5263e7b37 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks

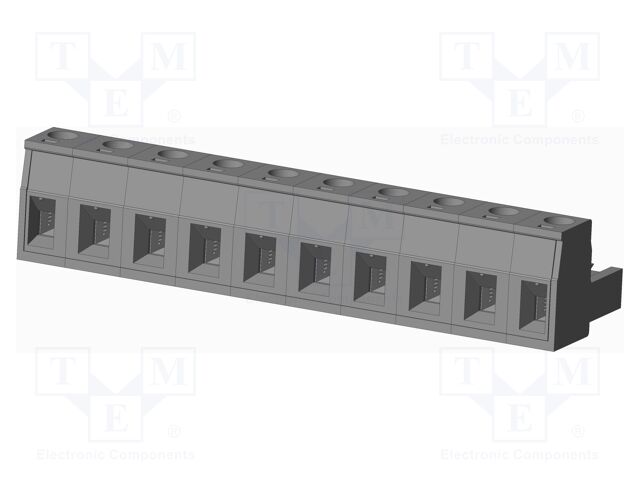

Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 12A
Rated voltage: 300V
Number of pins: 10
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact material: phosphor bronze
Contact plating: tinned
Colour: grey
Flammability rating: UL94V-0
Body material: PA66
Wire size: 24AWG...12AWG
Contacts pitch: 7.62mm
Operating temperature: -40...115°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TJ1001800000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 12A, Rated voltage: 300V, Number of pins: 10, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact material: phosphor bronze, Contact plating: tinned, Colour: grey, Flammability rating: UL94V-0, Body material: PA66, Wire size: 24AWG...12AWG, Contacts pitch: 7.62mm, Operating temperature: -40...115°C, Anzahl je Verpackung: 1 Stücke.
