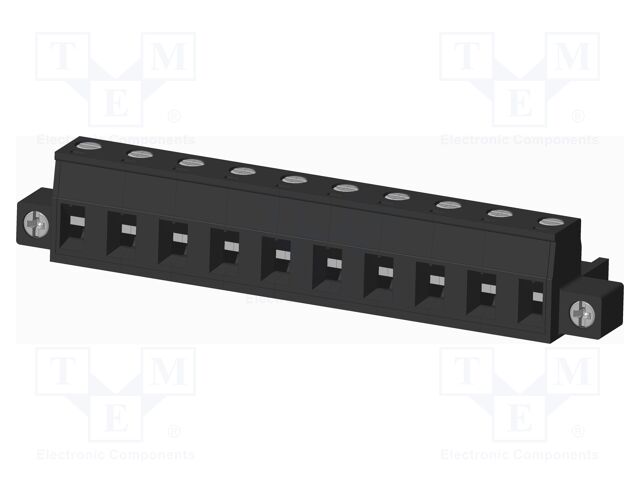

TJ10A1020000G

TJ10A1020000G AMPHENOL ANYTEK

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC895086BA4C0D6&compId=TJ7.5.pdf?ci_sign=ba1816096d561ec847d531e8c1c316d6f0891767 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66
Operating temperature: -40...115°C
Contact material: phosphor bronze
Mechanical mounting: for cable
Contact plating: tinned
Electrical mounting: screw terminal
Body material: PA66
Connector: plug
Spatial orientation: straight
Flammability rating: UL94V-0
Contacts pitch: 7.5mm
Current rating: 12A
Number of pins: 10
Wire size: 24AWG...12AWG
Rated voltage: 300V
Colour: black
Type of connector: pluggable terminal block
Kind of connector: female
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TJ10A1020000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66, Operating temperature: -40...115°C, Contact material: phosphor bronze, Mechanical mounting: for cable, Contact plating: tinned, Electrical mounting: screw terminal, Body material: PA66, Connector: plug, Spatial orientation: straight, Flammability rating: UL94V-0, Contacts pitch: 7.5mm, Current rating: 12A, Number of pins: 10, Wire size: 24AWG...12AWG, Rated voltage: 300V, Colour: black, Type of connector: pluggable terminal block, Kind of connector: female, Anzahl je Verpackung: 1 Stücke.
