TJ200F04M3L,LXHQ
Produktcode: 170672
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller:
Transistoren > Transistoren P-Kanal-Feld
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote TJ200F04M3L,LXHQ nach Preis ab 2.89 EUR bis 8.16 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TJ200F04M3L,LXHQ | Toshiba Semiconductor and Storage |
Description: MOSFET P-CH 40V 200A TO220SM Packaging: Tape & Reel (TR) Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Mounting Type: Surface Mount Operating Temperature: 175°C Technology: MOSFET (Metal Oxide) FET Type: P-Channel Current - Continuous Drain (Id) @ 25°C: 200A (Ta) Rds On (Max) @ Id, Vgs: 1.8mOhm @ 100A, 10V Power Dissipation (Max): 375W (Tc) Vgs(th) (Max) @ Id: 3V @ 1mA Supplier Device Package: TO-220SM(W) Grade: Automotive Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 6V, 10V Vgs (Max): +10V, -20V Drain to Source Voltage (Vdss): 40 V Gate Charge (Qg) (Max) @ Vgs: 460 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 1280 pF @ 10 V Qualification: AEC-Q101 |
auf Bestellung 2000 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
TJ200F04M3L,LXHQ | Toshiba |
MOSFETs 375W 1MHz Automotive; AEC-Q101 |
auf Bestellung 40776 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
|
|
TJ200F04M3L,LXHQ | Toshiba Semiconductor and Storage |
Description: MOSFET P-CH 40V 200A TO220SM Packaging: Cut Tape (CT) Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB Mounting Type: Surface Mount Operating Temperature: 175°C Technology: MOSFET (Metal Oxide) FET Type: P-Channel Current - Continuous Drain (Id) @ 25°C: 200A (Ta) Rds On (Max) @ Id, Vgs: 1.8mOhm @ 100A, 10V Power Dissipation (Max): 375W (Tc) Vgs(th) (Max) @ Id: 3V @ 1mA Supplier Device Package: TO-220SM(W) Grade: Automotive Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 6V, 10V Vgs (Max): +10V, -20V Drain to Source Voltage (Vdss): 40 V Gate Charge (Qg) (Max) @ Vgs: 460 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 1280 pF @ 10 V Qualification: AEC-Q101 |
auf Bestellung 2873 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TJ200F04M3L,LXHQ |
|
Hersteller: Toshiba Semiconductor and Storage
Description: MOSFET P-CH 40V 200A TO220SM
Packaging: Tape & Reel (TR)

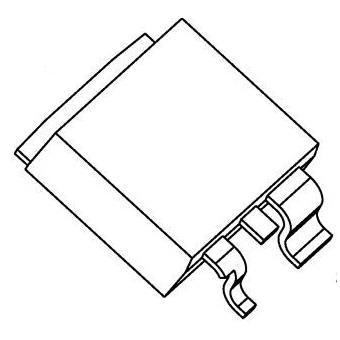

Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: 175°C
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
Rds On (Max) @ Id, Vgs: 1.8mOhm @ 100A, 10V
Power Dissipation (Max): 375W (Tc)
Vgs(th) (Max) @ Id: 3V @ 1mA
Supplier Device Package: TO-220SM(W)
Grade: Automotive
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): +10V, -20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 460 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1280 pF @ 10 V
Qualification: AEC-Q101
Description: MOSFET P-CH 40V 200A TO220SM
Packaging: Tape & Reel (TR)
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: 175°C
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
Rds On (Max) @ Id, Vgs: 1.8mOhm @ 100A, 10V
Power Dissipation (Max): 375W (Tc)
Vgs(th) (Max) @ Id: 3V @ 1mA
Supplier Device Package: TO-220SM(W)
Grade: Automotive
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): +10V, -20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 460 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1280 pF @ 10 V
Qualification: AEC-Q101
auf Bestellung 2000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1000+ | 2.89 EUR |
| TJ200F04M3L,LXHQ |
|
Hersteller: Toshiba
MOSFETs 375W 1MHz Automotive; AEC-Q101
MOSFETs 375W 1MHz Automotive; AEC-Q101
auf Bestellung 40776 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 8 EUR |
| 10+ | 4.08 EUR |
| 100+ | 3.71 EUR |
| 500+ | 3.17 EUR |
| 1000+ | 2.92 EUR |
| TJ200F04M3L,LXHQ |
|
Hersteller: Toshiba Semiconductor and Storage
Description: MOSFET P-CH 40V 200A TO220SM
Packaging: Cut Tape (CT)
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: 175°C
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
Rds On (Max) @ Id, Vgs: 1.8mOhm @ 100A, 10V
Power Dissipation (Max): 375W (Tc)
Vgs(th) (Max) @ Id: 3V @ 1mA
Supplier Device Package: TO-220SM(W)
Grade: Automotive
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): +10V, -20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 460 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1280 pF @ 10 V
Qualification: AEC-Q101
Description: MOSFET P-CH 40V 200A TO220SM
Packaging: Cut Tape (CT)
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: 175°C
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
Rds On (Max) @ Id, Vgs: 1.8mOhm @ 100A, 10V
Power Dissipation (Max): 375W (Tc)
Vgs(th) (Max) @ Id: 3V @ 1mA
Supplier Device Package: TO-220SM(W)
Grade: Automotive
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): +10V, -20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 460 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1280 pF @ 10 V
Qualification: AEC-Q101
auf Bestellung 2873 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 8.16 EUR |
| 10+ | 5.38 EUR |
| 50+ | 4.18 EUR |
| 100+ | 3.78 EUR |
| 500+ | 3.21 EUR |
