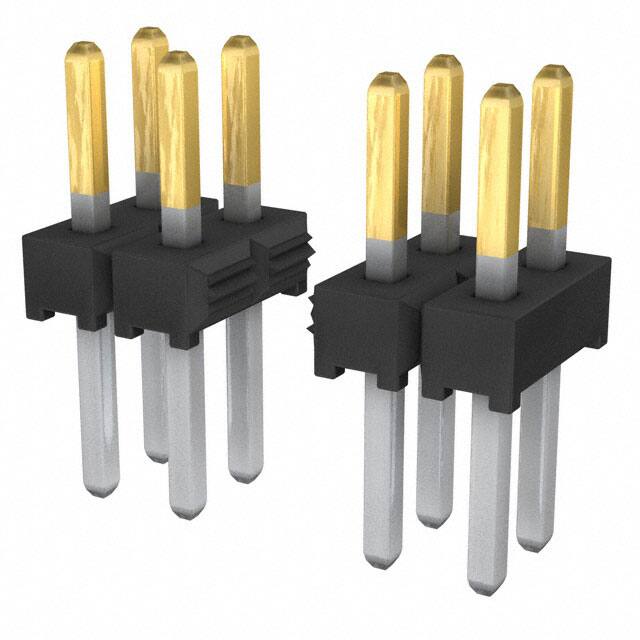

TMM-112-01-L-D Samtec
auf Bestellung 404 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 5.74 EUR |
| 10+ | 5.35 EUR |
| 500+ | 3.75 EUR |
| 1000+ | 3.38 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TMM-112-01-L-D Samtec
Description: CONN HEADER VERT 24POS 2MM, Packaging: Bulk, Connector Type: Header, Current Rating (Amps): 3.2A per Row, Mounting Type: Through Hole, Number of Positions: 24, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.059" (1.50mm), Shrouding: Unshrouded, Overall Contact Length: 0.323" (8.20mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.126" (3.20mm).
Weitere Produktangebote TMM-112-01-L-D nach Preis ab 3.83 EUR bis 6.60 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMM-112-01-L-D | Hersteller : Samtec Inc. |
 Description: CONN HEADER VERT 24POS 2MMPackaging: Bulk Connector Type: Header Current Rating (Amps): 3.2A per Row Mounting Type: Through Hole Number of Positions: 24 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.138" (3.50mm) Insulation Height: 0.059" (1.50mm) Shrouding: Unshrouded Overall Contact Length: 0.323" (8.20mm) Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.126" (3.20mm) |
auf Bestellung 1157 Stücke: Lieferzeit 10-14 Tag (e) |
|
