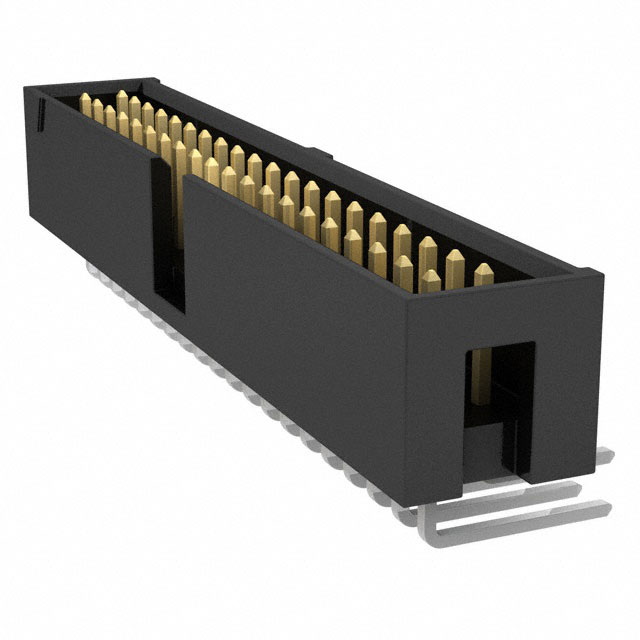

TSS-120-04-L-D-RA Samtec Inc.

Description: CONN HEADER R/A 40POS 2.54MM, Features: Keying Slot, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Through Hole, Right Angle, Number of Positions: 40, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.130" (3.30mm), Insulation Height: 0.365" (9.27mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).
