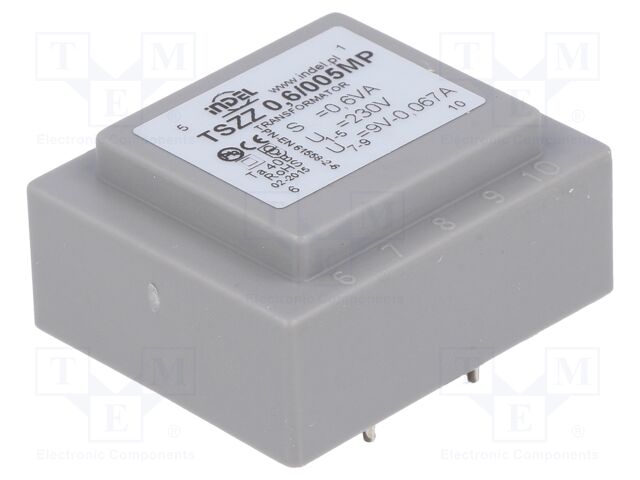

TSZZ0.6/005MP INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 0.6VA; 230VAC; 9V; 66mA; PCB; IP00, Type of transformer: encapsulated, Power: 0.6VA, Primary voltage: 230V AC, Secondary voltage 1: 9V, Secondary winding current 1: 66mA, Mounting: PCB, IP rating: IP00, Conform to the norm: PN EN 61558, Thermal class: Ta40B, Secondary winding terminals: 7-9, Primary winding terminals: 1-5, Insulation class: II, A dimension: 32.3mm, A1 dimension: 23.6mm, B dimension: 27.3mm, B1 dimension: 20.2mm, C dimension: 14.9mm, C1 dimension: 11.7mm, M dimension: 20mm, P dimension: 5.05mm, Electrical insulation strength: 4kV/60s.
