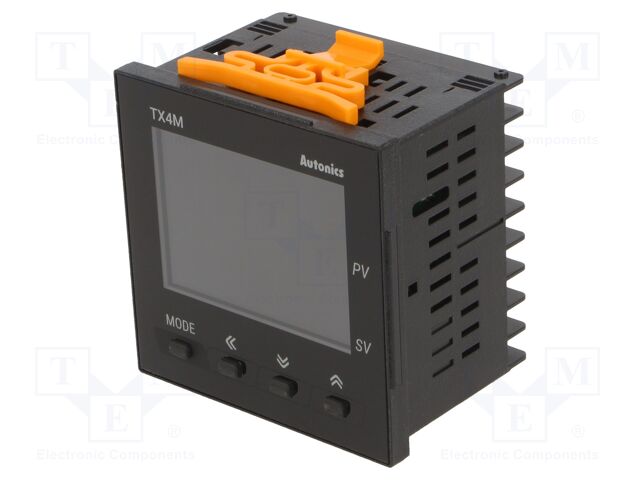

TX4M-24C AUTONICS

Category: Temperature Regulators, Description: Module: regulator; temperature; -1999÷9999; analogue,SSR; TX4M, Type of module: regulator, Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L; thermocouple R; thermocouple S; thermocouple T, Controlled parameter: temperature, Controlled parameter range: -1999...9999, Kind of output 1: analogue; SSR, Kind of output 2: alarm, Kind of output 3: alarm, Regulation for output 1: ON-OFF; P; PD; PI; PID, Mounting: on panel, Manufacturer series: TX4M, Output 1 electrical parameters: 0...20mA; 4...20mA; 12V DC / 20mA, Output 2 electrical parameters: 250V AC / 3A, Output 3 electrical parameters: 250V AC / 3A, Supply voltage: 100...240V AC, The programming method: foil keypad, Mounting hole diameter: 68x68mm, IP rating: IP50, Input 1 properties: RTD; thermocouple, Kind of display used: LCD, Display height 1: 17.3mm, Display 2 height: 11mm, Body dimensions: 72x72x51mm, Operating temperature: -10...50°C, Anzahl je Verpackung: 1 Stücke.
