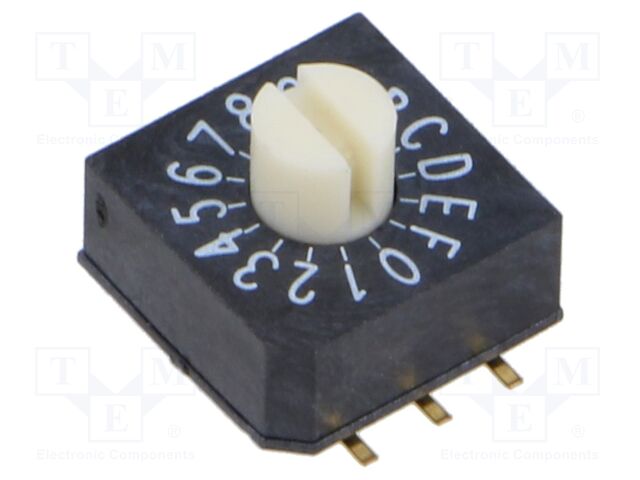

UAMR-16S

UAMR-16S SUNGMUN ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB281E1FD0988F3E30FEA3E0E1&compId=DATA%20SHEET_UAMR-16S.pdf?ci_sign=8851538e7a8c503efb98fd0709053b1539069b54 Hersteller: SUNGMUN ELECTRONICS
Category: Encoding Switches
Description: Encoding switch; HEX/BCD; Pos: 16; SMT; Rcont max: 100mΩ; 6.86Ncm
Type of switch: encoding switch
Mounting: SMT
Leads: for PCB
Kind of encoding switch: HEX/BCD
IP rating: IP67
Kind of knob: notched
Output code: real code
Switches features: with knob
Operating temperature: -40...85°C
Terminal pitch: 2.54mm
Knob dimensions: Ø4.1x3.2mm
Body dimensions: 10x10x4.5mm
DC contacts rating @R: 25mA / 12V DC
Max. contact resistance:: 100mΩ
Switching torque: 6.86Ncm
Number of positions: 16
Stable positions number: 16
Mechanical durability: 10000 cycles
Min. insulation resistance: 0.1GΩ
auf Bestellung 229 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
35+2.06 EUR
53+1.36 EUR
56+1.29 EUR
Mindestbestellmenge: 35
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details UAMR-16S SUNGMUN ELECTRONICS

Category: Encoding Switches, Description: Encoding switch; HEX/BCD; Pos: 16; SMT; Rcont max: 100mΩ; 6.86Ncm, Type of switch: encoding switch, Mounting: SMT, Leads: for PCB, Kind of encoding switch: HEX/BCD, IP rating: IP67, Kind of knob: notched, Output code: real code, Switches features: with knob, Operating temperature: -40...85°C, Terminal pitch: 2.54mm, Knob dimensions: Ø4.1x3.2mm, Body dimensions: 10x10x4.5mm, DC contacts rating @R: 25mA / 12V DC, Max. contact resistance:: 100mΩ, Switching torque: 6.86Ncm, Number of positions: 16, Stable positions number: 16, Mechanical durability: 10000 cycles, Min. insulation resistance: 0.1GΩ.
