Produkte > NICHICON > UEP0J332MHD

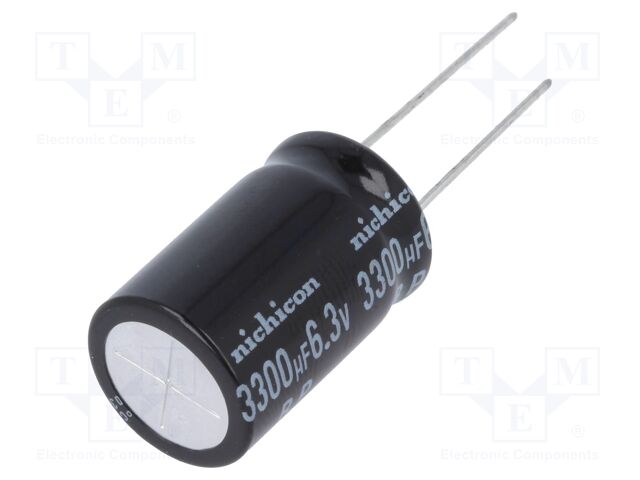

UEP0J332MHD

UEP0J332MHD NICHICON


pVersion=0046&contRep=ZT&docId=005056AB752F1ED7B9CAC5100E0B4A18&compId=e-uep.pdf?ci_sign=efe23039a0d2a5579b9dc1eabc1c5256543a2f92 Hersteller: NICHICON
Category: THT audio electrolytic capacitors
Description: Capacitor: electrolytic; bipolar; THT; 3300uF; 6.3VDC; Ø16x25mm
Type of capacitor: electrolytic
Mounting: THT
Capacitance: 3.3mF
Operating voltage: 6.3V DC
Body dimensions: Ø16x25mm
Terminal pitch: 7.5mm
Tolerance: ±20%
Operating temperature: -55...105°C
Manufacturer series: UEP
Capacitor application: audio equipment
Nominal life: 1000h
Kind of capacitor: bipolar
auf Bestellung 52 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
24+3.06 EUR
50+1.94 EUR
Mindestbestellmenge: 24
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details UEP0J332MHD NICHICON

Description: CAP ALUM 3300UF 20% 6.3V RADIAL, Packaging: Bulk, Tolerance: ±20%, Package / Case: Radial, Can, Size / Dimension: 0.630" Dia (16.00mm), Polarization: Bi-Polar, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 105°C, Applications: General Purpose, Lead Spacing: 0.295" (7.50mm), Lifetime @ Temp.: 1000 Hrs @ 105°C, Height - Seated (Max): 1.063" (27.00mm), Part Status: Not For New Designs, Capacitance: 3300 µF, Voltage - Rated: 6.3 V, Ripple Current @ Low Frequency: 1.11 A @ 120 Hz, Ripple Current @ High Frequency: 1.2765 A @ 10 kHz.

Weitere Produktangebote UEP0J332MHD nach Preis ab 2.55 EUR bis 3.31 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
UEP0J332MHD UEP0J332MHD Hersteller : Nichicon e-uep.pdf Description: CAP ALUM 3300UF 20% 6.3V RADIAL
Packaging: Bulk
Tolerance: ±20%
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Bi-Polar
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.295" (7.50mm)
Lifetime @ Temp.: 1000 Hrs @ 105°C
Height - Seated (Max): 1.063" (27.00mm)
Part Status: Not For New Designs
Capacitance: 3300 µF
Voltage - Rated: 6.3 V
Ripple Current @ Low Frequency: 1.11 A @ 120 Hz
Ripple Current @ High Frequency: 1.2765 A @ 10 kHz
auf Bestellung 102 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
6+3.31 EUR
10+2.55 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
UEP0J332MHD UEP0J332MHD Hersteller : Nichicon e_uep-3082377.pdf Aluminium Electrolytic Capacitors - Radial Leaded 6.3volts 3300uF 0.2L/S
