Produkte > UNI-T > UPO1204
UPO1204
  • UPO1204
  • UPO1204
  • UPO1204

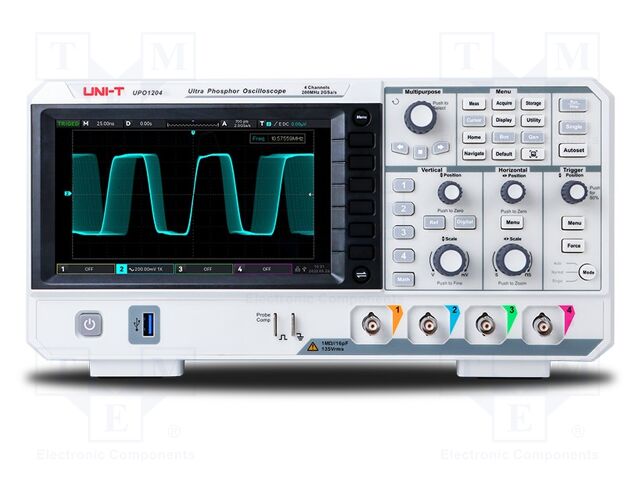

UPO1204 UNI-T

pVersion=0046&contRep=ZT&docId=005056AB281E1EDEBB830677F65180D6&compId=UPO1000.pdf?ci_sign=870434eef44c4146bee6e5acc7a1cf5be0c67d0c pVersion=0046&contRep=ZT&docId=005056AB281E1EDEBB830713CBD2A0D6&compId=UPO1000-UM.pdf?ci_sign=5771a693e15ce3db53773e5ff571eaed66e8bb3e Hersteller: UNI-T
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 200MHz; 2Gsps; 56Mpts; LCD TFT 7"
Type of oscilloscope: digital
Number of channels: 4
Band: 200MHz
Sampling: 2Gsps
Memory record length: 56Mpts
Kind of display used: LCD TFT 7"
Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; video signal; with delay
Time base: 1n...1ks/div
Max. input voltage: 400V
Vertical resolution: 8bit
Input coupling: AC, DC, GND
Interface: AUX; EXT Trig; LAN; USB device; USB Host
Rise time: ≤1.8ns
Input impedance: 1MΩ/16pF
Standard equipment: mains cable; oscilloscope probe; USB cable
Supply voltage: 100...240V AC
Display resolution: 800x480
Dimensions: 306x138x107mm
auf Bestellung 5 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+744.43 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details UPO1204 UNI-T

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 4; 200MHz; 2Gsps; 56Mpts; LCD TFT 7", Type of oscilloscope: digital, Number of channels: 4, Band: 200MHz, Sampling: 2Gsps, Memory record length: 56Mpts, Kind of display used: LCD TFT 7", Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; video signal; with delay, Time base: 1n...1ks/div, Max. input voltage: 400V, Vertical resolution: 8bit, Input coupling: AC, DC, GND, Interface: AUX; EXT Trig; LAN; USB device; USB Host, Rise time: ≤1.8ns, Input impedance: 1MΩ/16pF, Standard equipment: mains cable; oscilloscope probe; USB cable, Supply voltage: 100...240V AC, Display resolution: 800x480, Dimensions: 306x138x107mm.
