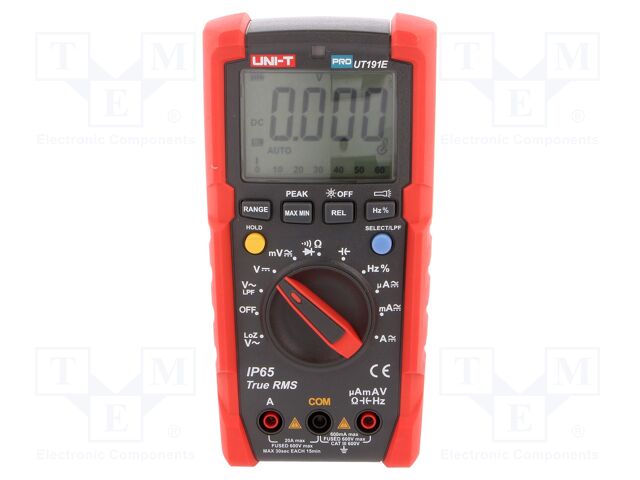

UT191E UNI-T
Hersteller: UNI-TCategory: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V; True RMS
Measuring instrument features: auto and manual ranging; automatic display backlit; automatic polarization selection; automatic power-off; built-in torch; low battery indicator; low input impedance function (LoZ); low-pass filter; MIN/MAX function; PEAK HOLD function; PEAK HOLD function for AC measurements; REL function
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance
Standard equipment: case; test leads
Conform to the norm: CAT III 600V; EN 61010
IP rating: IP65
Power supply: battery 6F22 9V x1
Battery/ rechargeable battery: battery 6F22 9V x1
Kind of display used: LCD
Continuity test: acoustic indication; <30Ω
Duty cycle factor: 0.1...99.9%
True effective value measurement: True RMS
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A
DC voltage measuring range: 600mV; 6V; 60V; 600V
Weight with battery: 428g
DC voltage measuring accuracy: ±(0,5% + 3 digits)
Bargraph: yes
Frequency measuring range: 10...1MHz
AC voltage measuring range: 600mV; 6V; 60V; 600V
AC current measuring accuracy: ±(1% + 3 digits)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Dimensions (W x H x D): 87x180x59mm
Illumination: yes
Type of meter: digital multimeter
AC voltage measuring accuracy: ±(0,7% + 3 digits)
Display parameters: (6000)
Capacitance measuring accuracy: ±(3% + 5 digits)
Resistance to: fall from 2m height
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A
Capacitance measuring range: 6nF; 60nF; 600µF; 6mF; 60mF
Test: diodes
Frequency measuring accuracy: ±(0,1% + 4 digits)
Resistance measuring accuracy: ±(0,8% + 2 digits)
DC current measuring accuracy: ±(0,8% + 3 digits)
Anzahl je Verpackung: 1 Stücke
auf Bestellung 5 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 91.58 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT191E UNI-T
Category: Portable digital multimeters, Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V; True RMS, Measuring instrument features: auto and manual ranging; automatic display backlit; automatic polarization selection; automatic power-off; built-in torch; low battery indicator; low input impedance function (LoZ); low-pass filter; MIN/MAX function; PEAK HOLD function; PEAK HOLD function for AC measurements; REL function, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance, Standard equipment: case; test leads, Conform to the norm: CAT III 600V; EN 61010, IP rating: IP65, Power supply: battery 6F22 9V x1, Battery/ rechargeable battery: battery 6F22 9V x1, Kind of display used: LCD, Continuity test: acoustic indication; .
