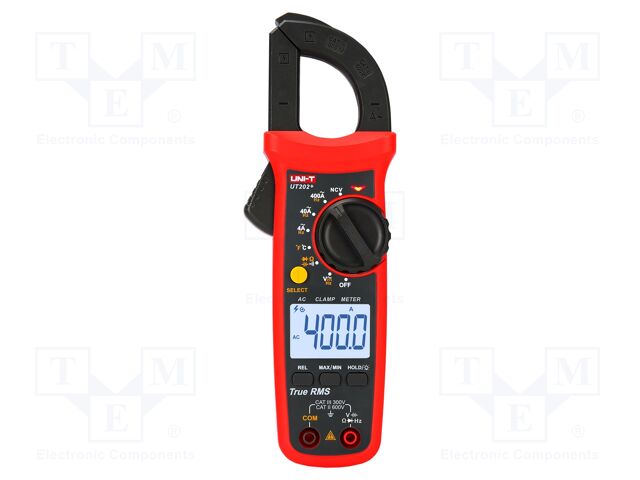

UT202+ UNI-T
Hersteller: UNI-T
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (4000); VDC: 600V
Type of meter: multifunction
Kind of meter: digital; pincers type
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; low battery indicator; MIN/MAX/REL function
Kind of display used: LCD
Display parameters: (4000)
Max. diameter of measured cable: 28mm
AC current measuring range: 4A; 40A; 400A
AC current measuring accuracy: ±(2% + 10 digit)
DC voltage measuring range: 600V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 600V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
True effective value measurement: True RMS
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Test: diodes
Continuity test: acoustic indication; <10Ω
Dimensions: 215x63x36mm
Weight with battery: 248g
Power supply: battery R03 AAA 1,5V x2
Measurement: AC current; AC voltage; capacitance; continuity; DC voltage; resistance; temperature
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Standard equipment: temperature probe; test leads
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Resistance measuring accuracy: ±(0.8%+2 digit)
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (4000); VDC: 600V
Type of meter: multifunction
Kind of meter: digital; pincers type
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; low battery indicator; MIN/MAX/REL function
Kind of display used: LCD
Display parameters: (4000)
Max. diameter of measured cable: 28mm
AC current measuring range: 4A; 40A; 400A
AC current measuring accuracy: ±(2% + 10 digit)
DC voltage measuring range: 600V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 600V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
True effective value measurement: True RMS
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Test: diodes
Continuity test: acoustic indication; <10Ω
Dimensions: 215x63x36mm
Weight with battery: 248g
Power supply: battery R03 AAA 1,5V x2
Measurement: AC current; AC voltage; capacitance; continuity; DC voltage; resistance; temperature
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Standard equipment: temperature probe; test leads
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Resistance measuring accuracy: ±(0.8%+2 digit)
auf Bestellung 11 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 33.10 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT202+ UNI-T
Category: Meters and AC Clamp Probes, Description: Meter: multifunction; digital,pincers type; LCD; (1999), Type of meter: multifunction, Kind of meter: digital; pincers type, Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; MAX function; overflow indication; polarization indicator, Kind of display used: LCD, Display parameters: (1999), Max. diameter of measured cable: 26mm, AC current measuring range: 2A; 20A; 200A; 400A, AC current measuring accuracy: ±(1.5% + 5 digit), DC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 600V, DC voltage measuring accuracy: ±(0.8% + 1 digit), AC voltage measuring range: 1mV...2V; 20V; 200V; 600V, AC voltage measuring accuracy: ±(1.2% + 5 digit), Resistance measuring range: 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ, Test: diodes, Continuity test: acoustic indication; .
