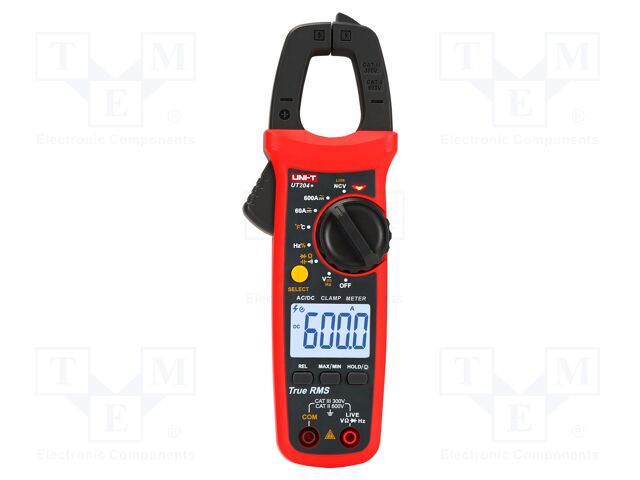

UT204+ UNI-T
Hersteller: UNI-T
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 28mm; LCD
Type of meter: multifunction
Kind of meter: digital; pincers type
Max. diameter of measured cable: 28mm
Kind of display used: LCD
Display parameters: (6000)
DC current measuring range: 60A; 600A
AC current measuring range: 60A; 600A
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; overflow indication; polarization indicator; REL function
DC current measuring accuracy: ±(2.5% + 5 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)
DC voltage measuring range: 600mV; 6V; 60V; 600V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
Resistance measuring accuracy: ±(0.8%+2 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Frequency measuring range: 10...10MHz
Duty cycle factor: 0.1...99.9%
Continuity test: acoustic indication; <10Ω
Test: diodes
Pollution degree: 2
Dimensions: 215x63x36mm
Weight with battery: 235g
Power supply: battery R03 AAA 1,5V x2

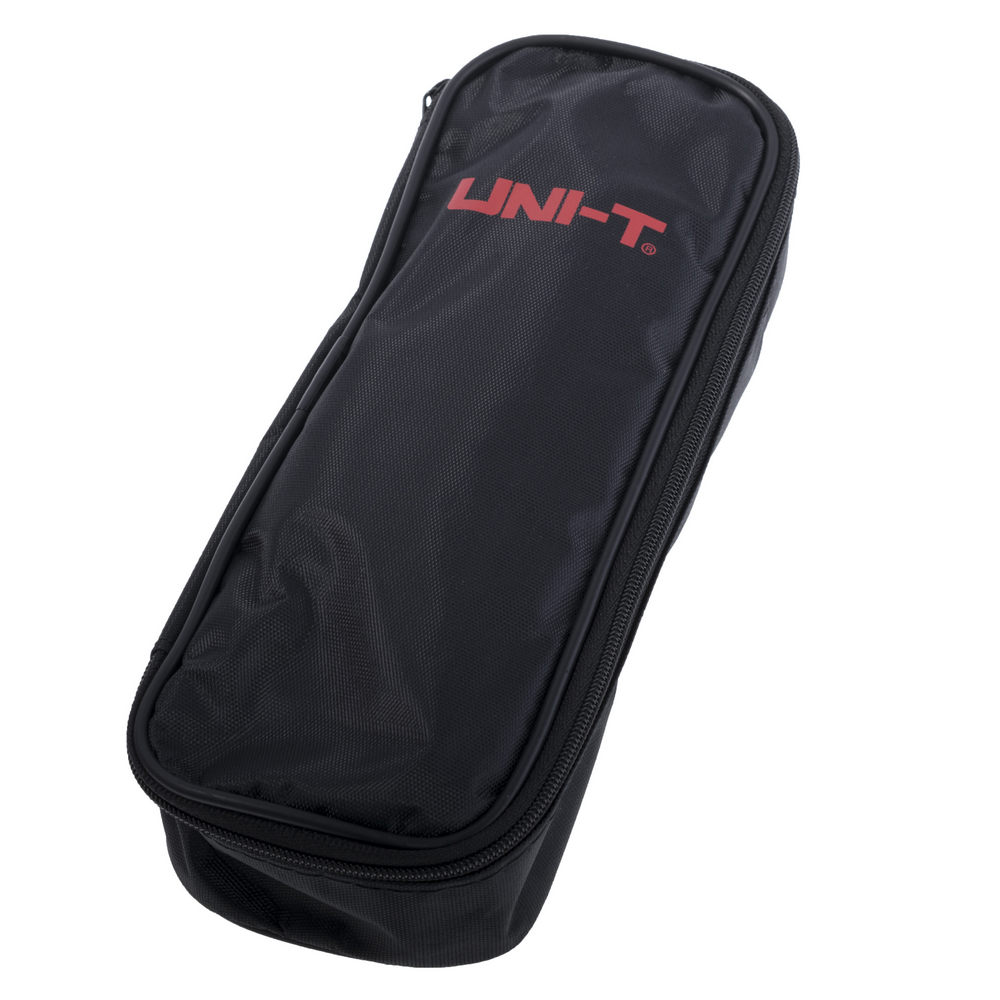

Standard equipment: case; test leads; thermocouple
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Anzahl je Verpackung: 1 Stücke
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 28mm; LCD
Type of meter: multifunction
Kind of meter: digital; pincers type
Max. diameter of measured cable: 28mm
Kind of display used: LCD
Display parameters: (6000)
DC current measuring range: 60A; 600A
AC current measuring range: 60A; 600A
Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; overflow indication; polarization indicator; REL function
DC current measuring accuracy: ±(2.5% + 5 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)
DC voltage measuring range: 600mV; 6V; 60V; 600V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
Resistance measuring accuracy: ±(0.8%+2 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Frequency measuring range: 10...10MHz
Duty cycle factor: 0.1...99.9%
Continuity test: acoustic indication; <10Ω
Test: diodes
Pollution degree: 2
Dimensions: 215x63x36mm
Weight with battery: 235g
Power supply: battery R03 AAA 1,5V x2
Standard equipment: case; test leads; thermocouple
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 2+ | 71.16 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT204+ UNI-T
Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,pincers type; Øcable: 26mm; LCD, Type of meter: multifunction, Kind of meter: digital; pincers type, Max. diameter of measured cable: 26mm, Kind of display used: LCD, Display parameters: (3999), DC current measuring range: 40A; 400A, AC current measuring range: 40A; 400A, Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; overflow indication; polarization indicator; REL function, DC current measuring accuracy: ±(2% + 3 digit), AC current measuring accuracy: ±(2.5% + 5 digit), DC voltage measuring range: 10µV...400mV; 4V; 40V; 400V; 600V, DC voltage measuring accuracy: ±(0.8% + 1 digit), AC voltage measuring range: 1mV...4V; 40V; 400V; 600V, AC voltage measuring accuracy: ±(1% + 5 digit), Resistance measuring accuracy: ±(1%+2 digit), True effective value measurement: True RMS, Resistance measuring range: 100mΩ...400Ω; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Frequency measuring range: 10...1MHz, Duty cycle factor: 0.1...99.9%, Continuity test: acoustic indication; .
Möglichen Substitutionen UT204+ UNI-T
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
|---|---|---|---|---|---|
 +4 |
UT204+ (UNI-T) Digital clamp meter Produktcode: 117126 |
Hersteller : Uni-Trend (Uni-T) |
 Werkzeuge und Geräte > MessgeräteGruppe: Струмовимірювальні кліщі Beschreibung: Цифрові струмовимірювальні кліщі True RMS. Максимальне відкриття: 28мм. Вимірювання: постійна напруга: 600mV ... 600V, змінна напруга: 6V ... 600V, змінний струм: 60A / 600A ± (2%), опір: 600 Ohm ... 60 MOhm, частота: 10Hz ... 10MHz ± (0,1% + 4), ємність: 60nF ... 60mF. Температура: -40 ... 1000 ° C. Тест діодів, прозвонка. Дисплей 6000 відліків, автоматичне визначення діапазону, автосканування, утримання даних, індикація заряду батареї живлення, автовимкнення. Живлення: AAAx2. Габаритні розміри: 215x63x36 мм. Вага: 235г. 10 Hz...10 MHz Вимірювання напруги та струму: 600 mV...600 V/ 600 A Вимірювання опору: 600 Ohm...60 MOhm Вимірювання індуктивності: нема Вимірювання ємності: 60 nF...40 mF Вимірювання температури: -40...+1000°C |
auf Bestellung 47 Stück: Lieferzeit 21-28 Tag (e)erwartet 40 Stück: 40 Stück - erwartet 15.05.2024 |
Weitere Produktangebote UT204+ nach Preis ab 71.16 EUR bis 71.16 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
|---|---|---|---|---|---|---|---|---|---|
|
|
UT204+ | Hersteller : UNI-T |
Category: Meters and AC/DC Clamp Probes Description: Meter: multifunction; digital,pincers type; Øcable: 28mm; LCD Type of meter: multifunction Kind of meter: digital; pincers type Max. diameter of measured cable: 28mm Kind of display used: LCD Display parameters: (6000) DC current measuring range: 60A; 600A AC current measuring range: 60A; 600A Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; overflow indication; polarization indicator; REL function DC current measuring accuracy: ±(2.5% + 5 digit) AC current measuring accuracy: ±(2.5% + 5 digit) DC voltage measuring range: 600mV; 6V; 60V; 600V DC voltage measuring accuracy: ±(0.5% + 2 digit) AC voltage measuring range: 6V; 60V; 600V AC voltage measuring accuracy: ±(0.8% + 5 digit) Resistance measuring accuracy: ±(0.8%+2 digit) True effective value measurement: True RMS Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ Frequency measuring range: 10...10MHz Duty cycle factor: 0.1...99.9% Continuity test: acoustic indication; <10Ω Test: diodes Pollution degree: 2 Dimensions: 215x63x36mm Weight with battery: 235g Power supply: battery R03 AAA 1,5V x2 Standard equipment: case; test leads; thermocouple Measurement: AC current; AC voltage; continuity; DC current; DC voltage; duty cycle; frequency; resistance; temperature Conform to the norm: CAT II 600V; CAT III 300V; EN 61010 Battery/ rechargeable battery: battery R03 AAA 1,5V x2 |
auf Bestellung 8 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
 +3 |

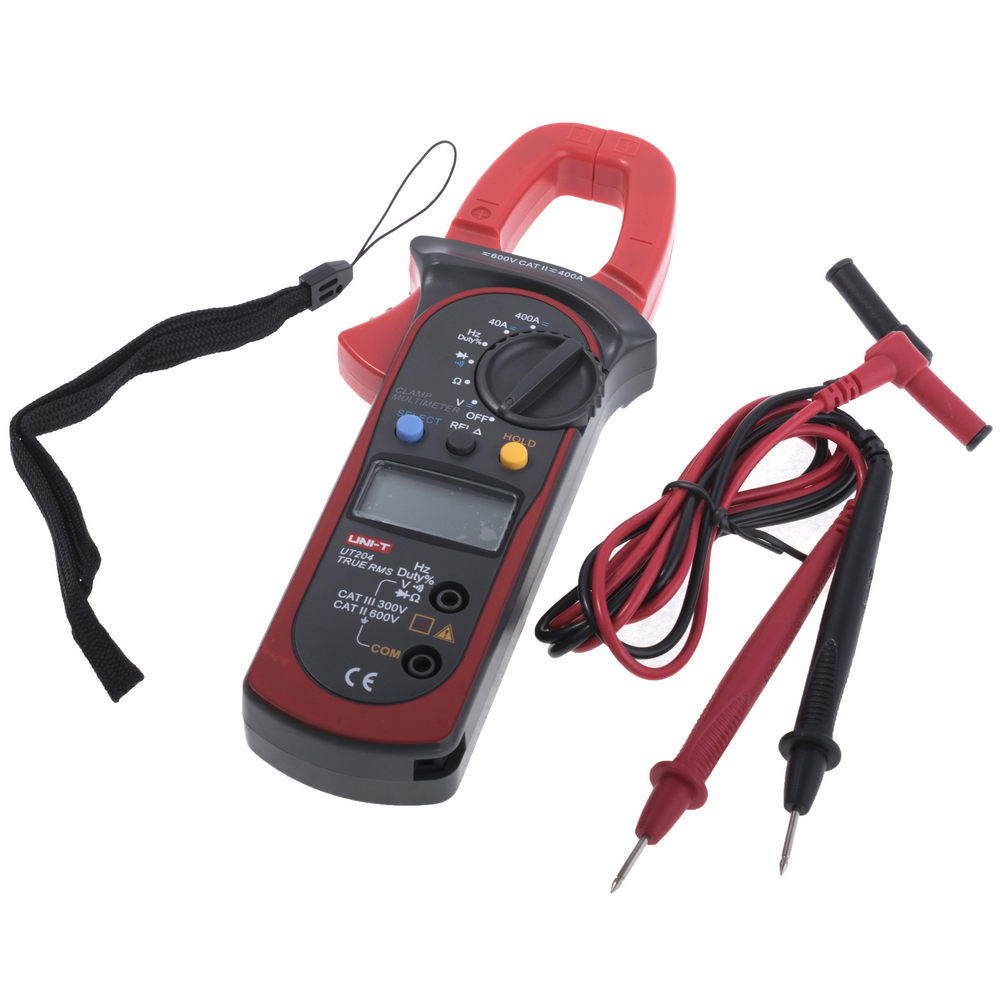

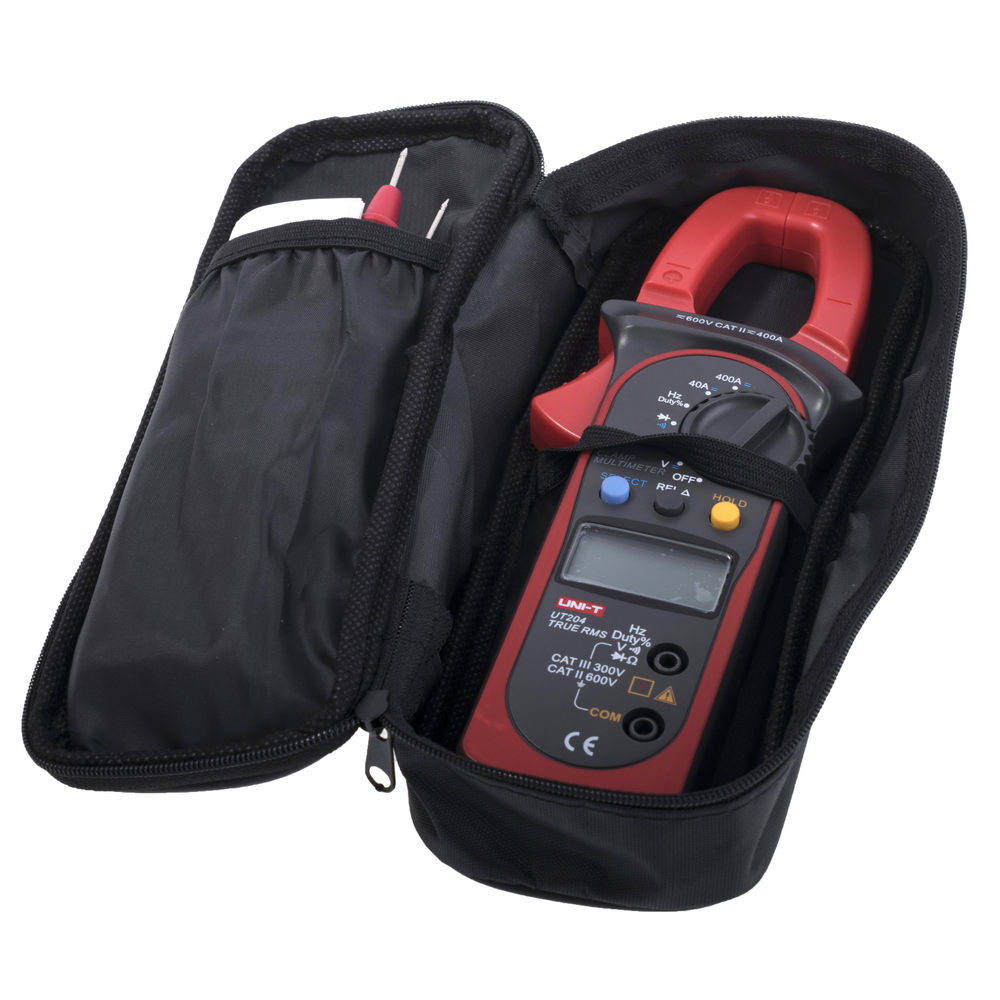

UT204 Produktcode: 44274 |
Hersteller : Uni-Trend (Uni-T) |
Werkzeuge und Geräte > Messgeräte Gruppe: Струмовимірювальні кліщі Beschreibung: Цифрові струмовимірювальні кліщі True RMS. Максимальне відкриття: 26мм. Вимірювання: постійна напруга: 400mV ... 600V ± (1% + 3), змінна напруга: 4V ... 600V ± (1,2% + 5), змінний струм: 40A ± (2,5% + 8) / 400A ± (2,5% + 5), опір: 400 Ohm ... 40 MOhm, частота: 10Hz ... 1MHz ± (0,1% + 3), тест діодів, прозвонка ,. Дисплей 6000 відліків, автоматичне визначення діапазону, автосканування, утримання даних, індикація заряду батареї живлення, автовимкнення. Живлення: "Крона" 6F22. Габаритні розміри: 208x76x30 мм. Вага: 260г. |
Produkt ist nicht verfügbar
|
|||||
 +4 |
UT204 | Hersteller : UNI-T |
Category: Meters and AC/DC Clamp Probes Description: Meter: multifunction; digital,pincers type; Øcable: 26mm; LCD Type of meter: multifunction Kind of meter: digital; pincers type Max. diameter of measured cable: 26mm Kind of display used: LCD Display parameters: (3999) DC current measuring range: 40A; 400A AC current measuring range: 40A; 400A Measuring instrument features: automatic power-off; autoranging; HOLD function; low battery indicator; overflow indication; polarization indicator; REL function DC current measuring accuracy: ±(2% + 3 digit) AC current measuring accuracy: ±(2.5% + 5 digit) DC voltage measuring range: 10µV...400mV; 4V; 40V; 400V; 600V DC voltage measuring accuracy: ±(0.8% + 1 digit) AC voltage measuring range: 1mV...4V; 40V; 400V; 600V AC voltage measuring accuracy: ±(1% + 5 digit) Resistance measuring accuracy: ±(1%+2 digit) True effective value measurement: True RMS Resistance measuring range: 100mΩ...400Ω; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ Frequency measuring range: 10...1MHz Duty cycle factor: 0.1...99.9% Continuity test: acoustic indication; <10Ω Test: diodes Pollution degree: 2 Dimensions: 208x76x30mm Weight with battery: 260g Power supply: battery 6F22 9V x1 Standard equipment: case; test leads Measurement: AC current; AC voltage; continuity; DC current; DC voltage; duty cycle; frequency; resistance Conform to the norm: CAT II 600V; CAT III 300V; EN 61010 Battery/ rechargeable battery: battery 6F22 9V x1 Illumination: yes |
Produkt ist nicht verfügbar |
