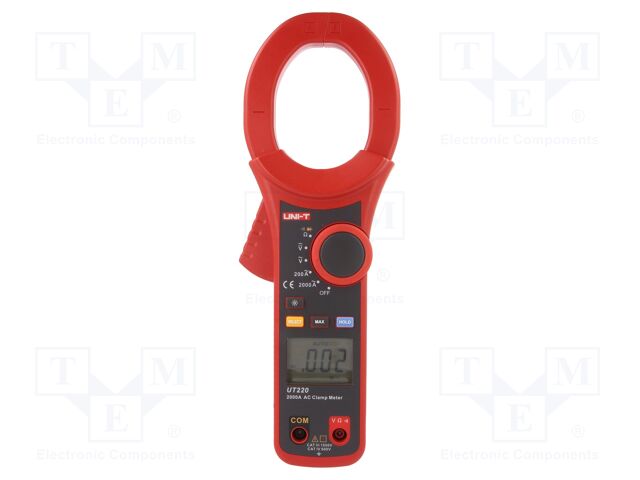

UT220 UNI-T
Hersteller: UNI-T
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (2000)
Battery/ rechargeable battery: battery 6F22 9V x1
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Test: diodes
Kind of display used: LCD
Illumination: yes
AC current measuring range: 200A; 2kA
DC voltage measuring range: 1mV...2V; 20V; 200V; 1kV
AC voltage measuring range: 1mV...2V; 20V; 200V; 700V
Max. diameter of measured cable: 60mm
Resistance measuring range: 100mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ
Dimensions: 298x107x47mm
DC voltage measuring accuracy: ±(0.8% + 1 digit)
Resistance measuring accuracy: ±(1%+2 digit)
AC voltage measuring accuracy: ±(1.2% + 5 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)
Weight with battery: 389g
Display parameters: (2000)
Measurement: AC current; AC voltage; continuity; DC voltage; resistance
Continuity test: acoustic indication; <10Ω
Standard equipment: case; test leads
Type of meter: multifunction
Kind of meter: digital; pincers type
Measuring instrument features: HOLD function; low battery indicator; MAX function; overload indicator; polarization indicator
Power supply: battery 6F22 9V x1
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (2000)
Battery/ rechargeable battery: battery 6F22 9V x1
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Test: diodes
Kind of display used: LCD
Illumination: yes
AC current measuring range: 200A; 2kA
DC voltage measuring range: 1mV...2V; 20V; 200V; 1kV
AC voltage measuring range: 1mV...2V; 20V; 200V; 700V
Max. diameter of measured cable: 60mm
Resistance measuring range: 100mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ
Dimensions: 298x107x47mm
DC voltage measuring accuracy: ±(0.8% + 1 digit)
Resistance measuring accuracy: ±(1%+2 digit)
AC voltage measuring accuracy: ±(1.2% + 5 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)
Weight with battery: 389g
Display parameters: (2000)
Measurement: AC current; AC voltage; continuity; DC voltage; resistance
Continuity test: acoustic indication; <10Ω
Standard equipment: case; test leads
Type of meter: multifunction
Kind of meter: digital; pincers type
Measuring instrument features: HOLD function; low battery indicator; MAX function; overload indicator; polarization indicator
Power supply: battery 6F22 9V x1
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 69.01 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT220 UNI-T
Category: Meters and AC Clamp Probes, Description: Meter: multifunction; digital,pincers type; LCD; (2000), Battery/ rechargeable battery: battery 6F22 9V x1, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Test: diodes, Kind of display used: LCD, Illumination: yes, AC current measuring range: 200A; 2kA, DC voltage measuring range: 1mV...2V; 20V; 200V; 1kV, AC voltage measuring range: 1mV...2V; 20V; 200V; 700V, Max. diameter of measured cable: 60mm, Resistance measuring range: 100mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ, Dimensions: 298x107x47mm, DC voltage measuring accuracy: ±(0.8% + 1 digit), Resistance measuring accuracy: ±(1%+2 digit), AC voltage measuring accuracy: ±(1.2% + 5 digit), AC current measuring accuracy: ±(2.5% + 5 digit), Weight with battery: 389g, Display parameters: (2000), Measurement: AC current; AC voltage; continuity; DC voltage; resistance, Continuity test: acoustic indication; .
