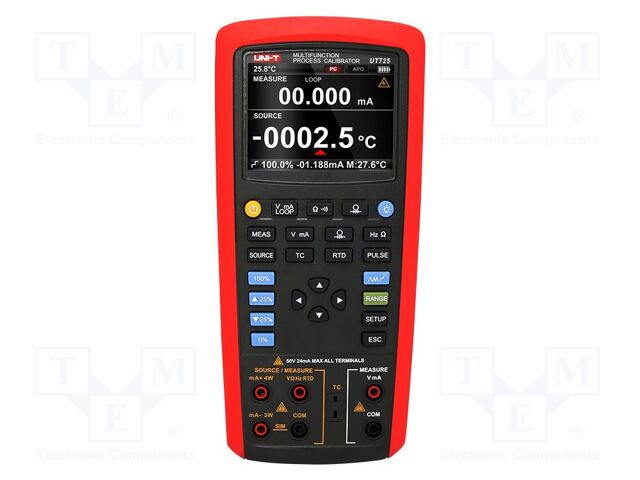

Hersteller: UNI-T
Category: Calibrators
Description: Meter: calibrator; loop,thermocouple; VDC: 50mV,500mV,50V; 0÷24mA
Type of meter: calibrator
Kind of calibrator: loop; thermocouple
Kind of display used: LCD
DC voltage measuring range: 50mV; 500mV; 50V
DC voltage measuring accuracy: ±(0.02% + 2 digit)
DC current measuring range: 0...24mA
DC current measuring accuracy: ±(0.02% + 2 digit)
Resistance measuring range: 500...5000Ω
Resistance measuring accuracy: ±(0.05%+10 digit)
Frequency measuring range: 100Hz; 1kHz; 10kHz; 100kHz
Frequency measuring accuracy: ±(0.02%+2 digit)
Temperature measuring range (with K-type thermocouple): -200...1372°C
Temperature measuring range (with J-type thermocouple): -200...1200°C
Temperature measuring range (with B-type thermocouple): 600...1820°C
Temperature measuring range (with R-type thermocouple): 0...1767°C
Temperature measuring range (with S-type thermocouple): 0...1767°C
Temperature measuring range (with T-type thermocouple): -250...400°C
Temperature measuring range (with E-type thermocouple): -200...1000°C
Temperature measuring range with N-type thermocouple: -200...1300°C
Dimensions: 195x95x58mm
Power supply: battery AA 1,2V x6
Measuring instrument features: 24V loop supply voltage; automatic power-off; operates with thermocouple types: J, K, T, E, N, R, S, B, L, U, Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Cu100, Cu100-392, Pt100-JIS, Ni120; tests in 25% steps and at 100% of signal
Standard equipment: adapter; temperature probe; test leads; USB cable
Measurement: 4-20mA current loop; DC current; DC voltage; frequency; resistance
Measuring unit: °C; °F
Interface: USB
Battery/ rechargeable battery: battery AA 1,2V x6
Continuity test: <50Ω
Illumination: yes
