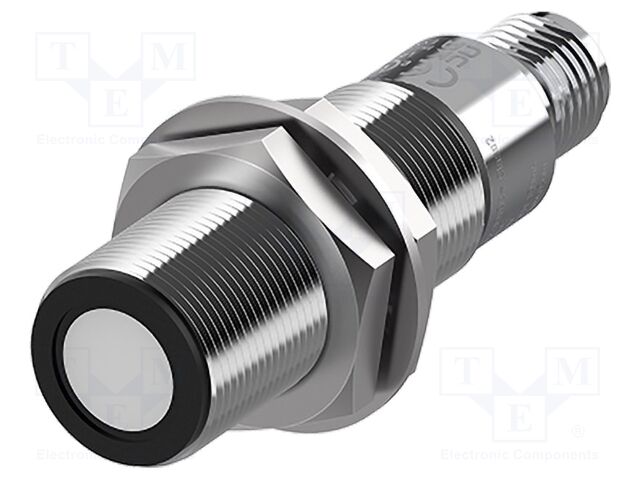

UTRCM18-1300D-IL2 AUTONICS

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF9AF104FF6D56A0D6&compId=UTR_EN_DTE.pdf?ci_sign=b245206024cd7f1052d7b24723965c6bf5848e8a

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF9AF102EECAD9C0D6&compId=UTR_EN_INS.pdf?ci_sign=be16e8a620fb70134077a401559e67684a437a55

Hersteller: AUTONICS
Category: Ultrasonic Sensors
Description: Sensor: ultrasonic; Range: 1.3m; Usup: 12÷30VDC; Housing: M18; 100mA
Type of sensor: ultrasonic
Range: 1.3m
Supply voltage: 12...30V DC
Switch housing: M18
Connection: M12
IP rating: IP67
Body material: stainless steel
Max. operating current: 0.1A
Number of pins: 5
Additional functions: LED status indicator
Manufacturer series: UTR
Kind of output 2: 4...20mA
Overall length: 65mm
Related items: UT-P
Kind of output: push-pull
Switching frequency: 10Hz
Communictions protocol: IO-LINK
Operating temperature: -25...70°C

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details UTRCM18-1300D-IL2 AUTONICS

Category: Ultrasonic Sensors, Description: Sensor: ultrasonic; Range: 1.3m; Usup: 12÷30VDC; Housing: M18; 100mA, Type of sensor: ultrasonic, Range: 1.3m, Supply voltage: 12...30V DC, Switch housing: M18, Connection: M12, IP rating: IP67, Body material: stainless steel, Max. operating current: 0.1A, Number of pins: 5, Additional functions: LED status indicator, Manufacturer series: UTR, Kind of output 2: 4...20mA, Overall length: 65mm, Related items: UT-P, Kind of output: push-pull, Switching frequency: 10Hz, Communictions protocol: IO-LINK, Operating temperature: -25...70°C.
