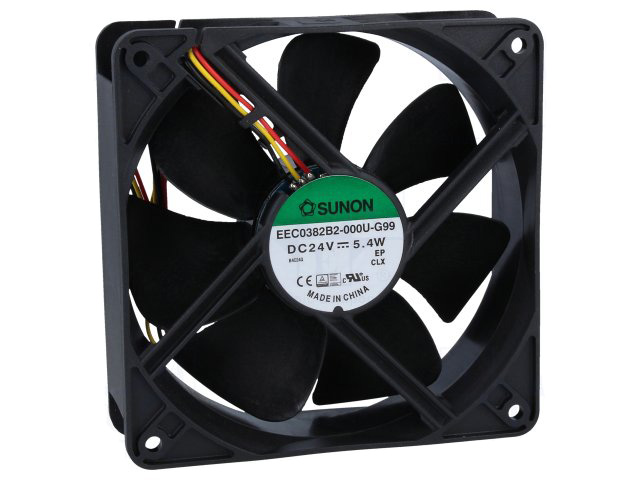

EEC0382B2-000U-G99 SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 120x120x38mm; 197.2m3/h; 44dBA; ball; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 10...27.6V DC
Fan dimensions: 120x120x38mm
Power consumption: 5.4W
Current rating: 0.224A
Fan efficiency: 197.2m3/h
Noise level: 44dBA
Kind of Bearing: ball
Rotational rate/speed: 2600 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.33m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 6.6mm H2O
Wire size: 24AWG
Signal output: F type
| Anzahl | Preis |
|---|---|
| 6+ | 14.03 EUR |
| 10+ | 10.17 EUR |
| 40+ | 9.12 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EEC0382B2-000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 120x120x38mm; 197.2m3/h; 44dBA; ball; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 10...27.6V DC, Fan dimensions: 120x120x38mm, Power consumption: 5.4W, Current rating: 0.224A, Fan efficiency: 197.2m3/h, Noise level: 44dBA, Kind of Bearing: ball, Rotational rate/speed: 2600 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x3, Lead length: 0.33m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 6.6mm H2O, Wire size: 24AWG, Signal output: F type.
Weitere Produktangebote EEC0382B2-000U-G99
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
Ventilator 120x120x38, 24V (EEC0382B2-G99) Produktcode: 105093
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller : SUNON |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 120x120x38 mm Spannung, V: 24 DC Luftvolumen, m3/Stunde: 197,2 м³/год. Leistung, Watt: 5,4 Вт Lärm, dB: 44 дБ Rotationsgeschwindigkeit, r/min: 2600 об/хв Beschreibung: Підшипник кульковий |
Produkt ist nicht verfügbar
|
|
| EEC0382B2-000U-G99 | Hersteller : Sunon Fans |
Description: 24VDC FAN 120X38MM ALARM Packaging: Box Features: Auto Restart, Speed Sensor (Tach) Voltage - Rated: 24VDC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 2600 RPM Air Flow: 116.0 CFM (3.25m³/min) Width: 38.00mm Termination: 3 Wire Leads Approval Agency: CCC, CE, cURus, TUV, UKCA Fan Type: Tubeaxial Noise: 44.0dB(A) Static Pressure: 0.260 in H2O (64.8 Pa) Power (Watts): 5.4 W |
Produkt ist nicht verfügbar |
||
| EEC0382B2-000U-G99 | Hersteller : Sunon |
DC Fans DC Axial Fan, 120x120x38mm, 24VDC, Ball, 3x Lead Wires, Auto Restart, Tach |
Produkt ist nicht verfügbar |
