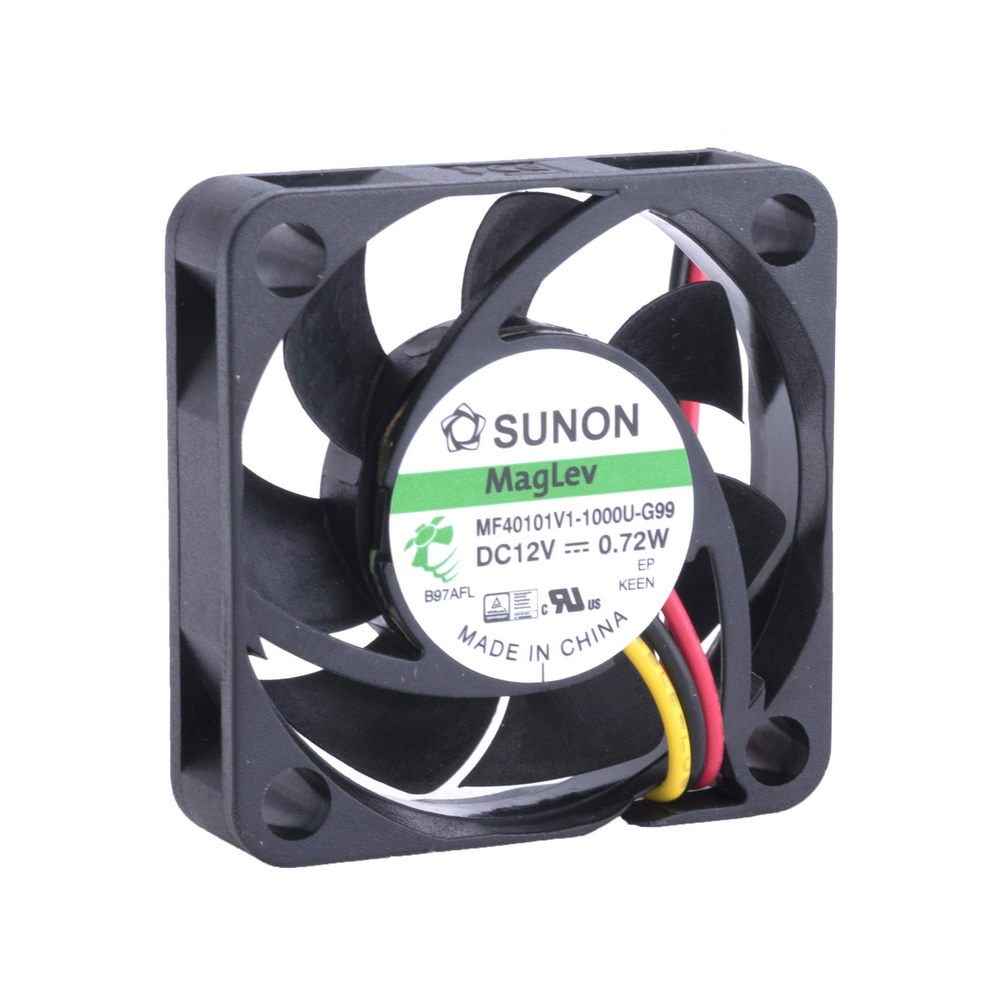

MF40101V1-1000U-G99 SUNON
Hersteller: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.52m3/h; 27.3dBA; Vapo; 7000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 40x40x10mm
Power consumption: 0.72W
Current rating: 51mA
Fan efficiency: 13.52m3/h
Noise level: 27.3dBA
Kind of Bearing: Vapo
Rotational rate/speed: 7000rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.83mm H2O
Wire size: 26AWG
Cable length: 0.3m
Related items: SR4-15.5
Signal output: F type
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2732 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 17+ | 4.35 EUR |
| 22+ | 3.40 EUR |
| 50+ | 3.13 EUR |
| 200+ | 2.59 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF40101V1-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.52m3/h; 27.3dBA; Vapo; 7000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 40x40x10mm, Power consumption: 0.72W, Current rating: 51mA, Fan efficiency: 13.52m3/h, Noise level: 27.3dBA, Kind of Bearing: Vapo, Rotational rate/speed: 7000rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x3, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 4.83mm H2O, Wire size: 26AWG, Cable length: 0.3m, Related items: SR4-15.5, Signal output: F type, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF40101V1-1000U-G99 nach Preis ab 2.59 EUR bis 11.05 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF40101V1-1000U-G99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.52m3/h; 27.3dBA; Vapo; 7000rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V DC Fan dimensions: 40x40x10mm Power consumption: 0.72W Current rating: 51mA Fan efficiency: 13.52m3/h Noise level: 27.3dBA Kind of Bearing: Vapo Rotational rate/speed: 7000rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 4.83mm H2O Wire size: 26AWG Cable length: 0.3m Related items: SR4-15.5 Signal output: F type |
auf Bestellung 2732 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
MF40101V1-1000U-G99 | Hersteller : Sunon |
DC Fans Axial Fan, 40x40x10mm, 12VDC, 8CFM, 0.19"H2O, Vapo, 3x Wire, Auto Restart, Tach |
auf Bestellung 158 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
MF40101V1-1000U-G99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 40X10MM 12VDC WIRE Packaging: Bulk Features: Auto Restart, Speed Sensor (Tach) Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Vapo-Bearing™ RPM: 7000 RPM Air Flow: 8.0 CFM (0.224m³/min) Width: 10.00mm Weight: 0.035 lb (15.88 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 3 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 27.3dB(A) Static Pressure: 0.190 in H2O (47.3 Pa) Part Status: Active Power (Watts): 620 mW |
auf Bestellung 2271 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| MF40101V1-1000U-G99 | Hersteller : Sunon |
40 x 40 x 10mm Motor Fan |
auf Bestellung 2767 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
| MF40101V1-1000U-G99 | Hersteller : Sunon |
40 x 40 x 10mm Motor Fan |
auf Bestellung 810 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
| MF40101V1-1000U-G99 | Hersteller : Sunon |
40 x 40 x 10mm Motor Fan |
auf Bestellung 2010 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
 |
