Produkte > SUNON > HA60151V4-1000U-A99

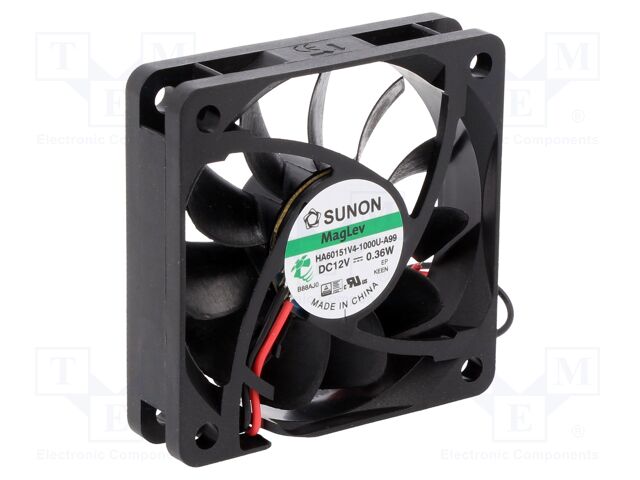

HA60151V4-1000U-A99

HA60151V4-1000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285E9C879C9D820&compId=HA60151V4-A99-A.pdf?ci_sign=e893845b87a6b11e7b6ef15371818e0d0e368c38 Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x15mm; 21.46m3/h; 14.5dBA; Vapo; 2200rpm
Operating temperature: -10...70°C
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 21.46m3/h
Static pressure: 1.02mm H2O
Noise level: 14.5dBA
Rotational rate/speed: 2200rpm
Current and power consumption tolerance: ±15%
Power consumption: 0.27W
Wire size: 26AWG
Lead length: 0.29m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 22mA
Supply voltage: 12V DC
Leads: leads x2
Operating voltage: 4.5...13.8V DC
Type of fan: DC
Fan dimensions: 60x60x15mm
Fan motor: brushless DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2489 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
15+4.85 EUR
50+3.73 EUR
100+3.25 EUR
200+3.07 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HA60151V4-1000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x15mm; 21.46m3/h; 14.5dBA; Vapo; 2200rpm, Operating temperature: -10...70°C, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 21.46m3/h, Static pressure: 1.02mm H2O, Noise level: 14.5dBA, Rotational rate/speed: 2200rpm, Current and power consumption tolerance: ±15%, Power consumption: 0.27W, Wire size: 26AWG, Lead length: 0.29m, Additional functions: autorestart, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Current rating: 22mA, Supply voltage: 12V DC, Leads: leads x2, Operating voltage: 4.5...13.8V DC, Type of fan: DC, Fan dimensions: 60x60x15mm, Fan motor: brushless DC, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote HA60151V4-1000U-A99 nach Preis ab 3.07 EUR bis 13.18 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
HA60151V4-1000U-A99 HA60151V4-1000U-A99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB82531ED9A285E9C879C9D820&compId=HA60151V4-A99-A.pdf?ci_sign=e893845b87a6b11e7b6ef15371818e0d0e368c38 Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x15mm; 21.46m3/h; 14.5dBA; Vapo; 2200rpm
Operating temperature: -10...70°C
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 21.46m3/h
Static pressure: 1.02mm H2O
Noise level: 14.5dBA
Rotational rate/speed: 2200rpm
Current and power consumption tolerance: ±15%
Power consumption: 0.27W
Wire size: 26AWG
Lead length: 0.29m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 22mA
Supply voltage: 12V DC
Leads: leads x2
Operating voltage: 4.5...13.8V DC
Type of fan: DC
Fan dimensions: 60x60x15mm
Fan motor: brushless DC
auf Bestellung 2489 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
15+4.85 EUR
50+3.73 EUR
100+3.25 EUR
200+3.07 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
HA60151V4-1000U-A99 HA60151V4-1000U-A99 Hersteller : Sunon Fans (D06077160G-01)-1.pdf Description: FAN AXIAL 60X15MM 12VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Vapo-Bearing™
RPM: 2200 RPM
Air Flow: 12.7 CFM (0.356m³/min)
Width: 15.00mm
Weight: 0.077 lb (34.93 g)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 14.5dB(A)
Static Pressure: 0.040 in H2O (10.0 Pa)
Part Status: Active
Power (Watts): 270 mW
auf Bestellung 7705 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+7.92 EUR
10+6.59 EUR
25+6.06 EUR
50+5.68 EUR
200+5.1 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
HA60151V4-1000U-A99 HA60151V4-1000U-A99 Hersteller : Sunon Sunon_HA60151V4_1000U_A99__D06077160G_01__1-3366871.pdf DC Fans Axial Fan, 60x60x15mm, 12VDC, 12.7CFM, 0.04"H2O, Vapo, Auto Restart
auf Bestellung 197 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+8.75 EUR
Im Einkaufswagen  Stück im Wert von  UAH
HA60151V4-1000U-A99 Hersteller : Sunon (D06077160G-01)-1.pdf Fan 60x60x15 mm 12VDC
auf Bestellung 1110 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
30+13.18 EUR
60+11.99 EUR
120+10.96 EUR
270+8.7 EUR
510+7.54 EUR
Mindestbestellmenge: 30
Im Einkaufswagen  Stück im Wert von  UAH
Вентилятор 60x60x15, 12V, (HA60151V4-A99-A) Вентилятор 60x60x15, 12V, (HA60151V4-A99-A)
Produktcode: 149579
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : Sunon Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 60x60x15 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 21,46 м³/год.
Leistung, Watt: 0,36 Вт
Lärm, dB: 14,5 дБ
Rotationsgeschwindigkeit, r/min: 2200 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
