Produkte > SUNON > ME80151V1-000U-A99

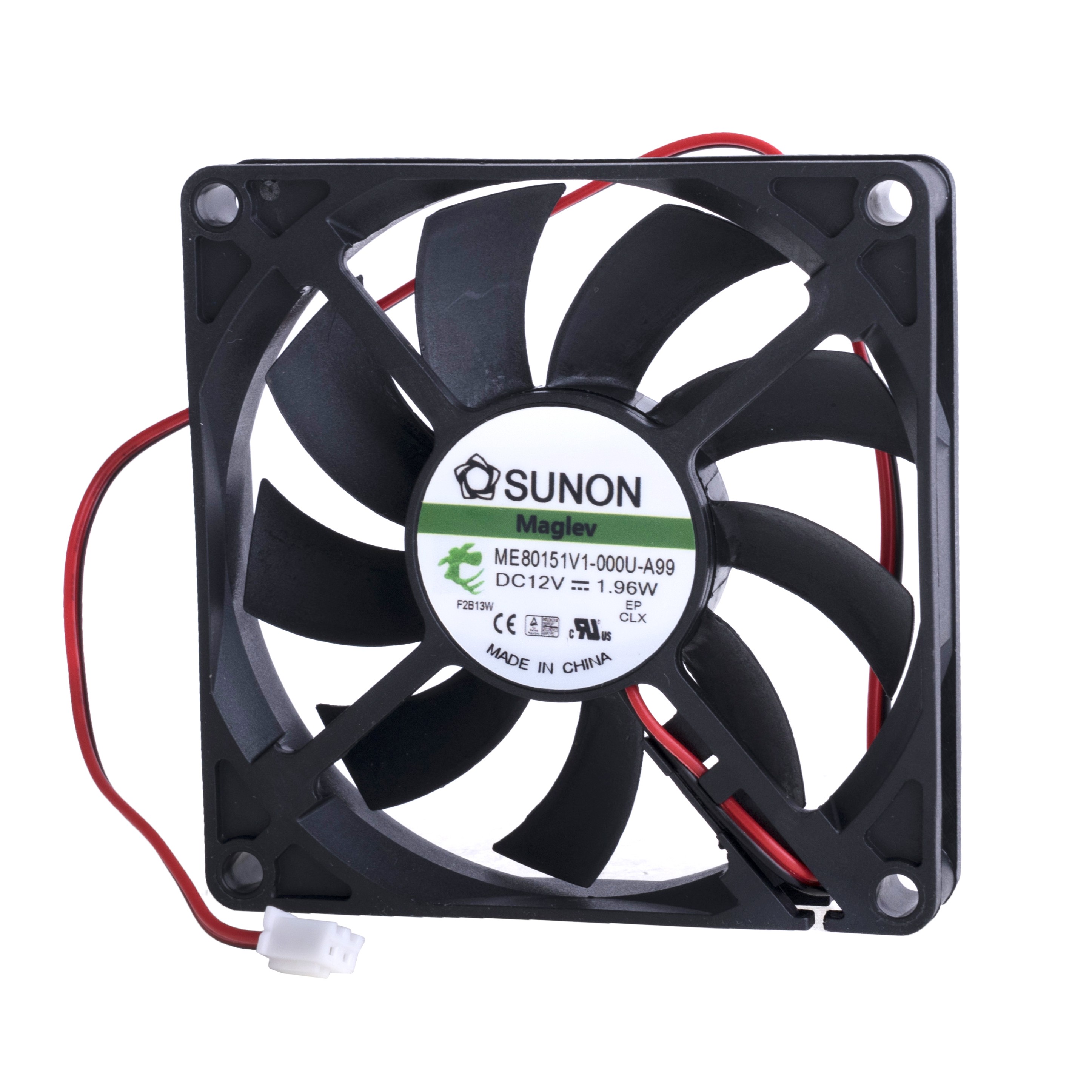

ME80151V1-000U-A99

ME80151V1-000U-A99 SUNON


pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b pVersion=0046&contRep=ZT&docId=E1D7C0A93E4065F1A704005056AB0C4F&compId=ME80151V1-A99.pdf?ci_sign=f38772091cdfbe7dcfde0ae52b89408bdda8dd60 Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; Vapo; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 80x80x15mm
Power consumption: 1.96W
Current rating: 0.163A
Fan efficiency: 62.86m3/h
Noise level: 34.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.55mm H2O
Wire size: 24AWG
Insulation class: A
Current and power consumption tolerance: ±15%
auf Bestellung 4652 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
11+6.65 EUR
12+6.12 EUR
50+4.76 EUR
200+4.08 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details ME80151V1-000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; Vapo; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 80x80x15mm, Power consumption: 1.96W, Current rating: 0.163A, Fan efficiency: 62.86m3/h, Noise level: 34.7dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3000 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Lead length: 0.3m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 3.55mm H2O, Wire size: 24AWG, Insulation class: A, Current and power consumption tolerance: ±15%, Anzahl je Verpackung: 1 Stücke.

Möglichen Substitutionen ME80151V1-000U-A99 SUNON

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
Вентилятор 80x80x15, 12V (ME80151V1-A99) Вентилятор 80x80x15, 12V (ME80151V1-A99)
Produktcode: 188821
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : China Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 80x80x15 mm
Spannung, V: 12 DC
Leistung, Watt: 1,96 Вт
auf Bestellung 2 Stück:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH

Weitere Produktangebote ME80151V1-000U-A99 nach Preis ab 4.08 EUR bis 14.05 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ME80151V1-000U-A99 ME80151V1-000U-A99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b pVersion=0046&contRep=ZT&docId=E1D7C0A93E4065F1A704005056AB0C4F&compId=ME80151V1-A99.pdf?ci_sign=f38772091cdfbe7dcfde0ae52b89408bdda8dd60 Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; Vapo; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 80x80x15mm
Power consumption: 1.96W
Current rating: 0.163A
Fan efficiency: 62.86m3/h
Noise level: 34.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.55mm H2O
Wire size: 24AWG
Insulation class: A
Current and power consumption tolerance: ±15%
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4652 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
11+6.65 EUR
12+6.12 EUR
50+4.76 EUR
200+4.08 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
ME80151V1-000U-A99 ME80151V1-000U-A99 Hersteller : Sunon Sunon%20DC%20Brushless%20Fan%20&%20Blower_(240-E).pdf DC Fans Axial Fan, 80x80x15mm, 12VDC, 37CFM, 0.14"H2O, Vapo, Wire, Auto Restart
auf Bestellung 1643 Stücke:
Lieferzeit 220-224 Tag (e)
Anzahl Preis
1+11.39 EUR
10+10.21 EUR
20+9.77 EUR
50+9.43 EUR
Im Einkaufswagen  Stück im Wert von  UAH
ME80151V1-000U-A99 ME80151V1-000U-A99 Hersteller : Sunon Fans Sunon%20DC%20Brushless%20Fan%20&%20Blower_(240-E).pdf Description: FAN AXIAL 80X15MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Vapo-Bearing™
RPM: 3000 RPM
Air Flow: 37.0 CFM (1.04m³/min)
Width: 15.00mm
Weight: 0.15 lb (68.04 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 34.7dB(A)
Static Pressure: 0.140 in H2O (34.9 Pa)
Part Status: Last Time Buy
Power (Watts): 1.96 W
auf Bestellung 2891 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+11.95 EUR
10+9.89 EUR
25+9.09 EUR
50+8.51 EUR
100+7.95 EUR
300+7.81 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
ME80151V1-000U-A99 Hersteller : Sunon Sunon%20DC%20Brushless%20Fan%20&%20Blower_(240-E).pdf DC Fan Axial Vapo Bearing 12V 37CFM 34.7dB 80 X 80 X 15mm High Speed
auf Bestellung 9708 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
16+9.3 EUR
50+6.98 EUR
200+5.75 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
ME80151V1-000U-A99 Hersteller : Sunon Sunon%20DC%20Brushless%20Fan%20&%20Blower_(240-E).pdf DC Fan Axial Vapo Bearing 12V 37CFM 34.7dB 80 X 80 X 15mm High Speed
auf Bestellung 965 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
11+14.05 EUR
25+12.33 EUR
50+11.31 EUR
100+10.41 EUR
300+9.3 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
Вентилятор 80x80x15, 12V (ME80151V1-A99 – Sunon) Вентилятор 80x80x15, 12V (ME80151V1-A99 – Sunon)
Produktcode: 153576
zu Favoriten hinzufügen Lieblingsprodukt

Hersteller : Sunon me80151v1-000u-a99.pdf Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 80x80x15 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 62,86 м³/год.
Leistung, Watt: 1,96 Вт
Lärm, dB: 34,7 дБ
Rotationsgeschwindigkeit, r/min: 3000 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
