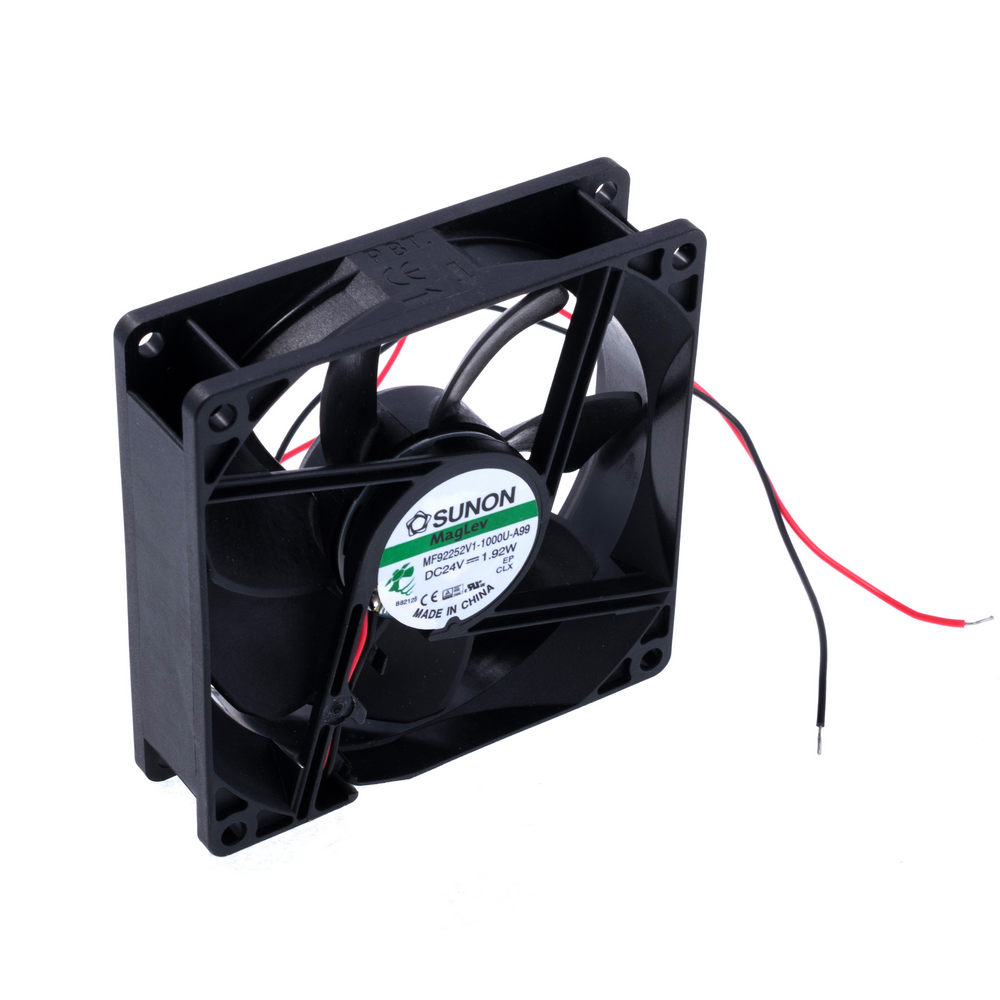

MF92252V1-1000U-A99 Sunon
| Anzahl | Privatkunde |
|---|---|
| 1+ | 15.32 EUR |
| 10+ | 13.61 EUR |
| 25+ | 12.79 EUR |
| 56+ | 12.32 EUR |
| 112+ | 11.35 EUR |
| 280+ | 10.61 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF92252V1-1000U-A99 Sunon
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 92x92x25mm; 87.04m3/h; 34dBA; Vapo; 3000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Fan dimensions: 92x92x25mm, Power consumption: 1.92W, Current rating: 75mA, Fan efficiency: 87.04m3/h, Noise level: 34dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3000rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 3.81mm H2O, Operating voltage: 8...27.6V DC, Wire size: 24AWG, Fan motor: brushless DC, Additional functions: autorestart, Lead length: 0.31m.
Weitere Produktangebote MF92252V1-1000U-A99 nach Preis ab 3.77 EUR bis 14.85 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF92252V1-1000U-A99 | SUNON |
 Category: DC24V FansDescription: Fan: DC; axial; 24VDC; 92x92x25mm; 87.04m3/h; 34dBA; Vapo; 3000rpm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Fan dimensions: 92x92x25mm Power consumption: 1.92W Current rating: 75mA Fan efficiency: 87.04m3/h Noise level: 34dBA Kind of Bearing: Vapo Rotational rate/speed: 3000rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 3.81mm H2O Operating voltage: 8...27.6V DC Wire size: 24AWG Fan motor: brushless DC Additional functions: autorestart Lead length: 0.31m |
auf Bestellung 4048 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
MF92252V1-1000U-A99 | Sunon Fans |
Description: FAN AXIAL 92X25MM 24VDC WIRE Features: Auto Restart Packaging: Box Voltage - Rated: 24VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Vapo-Bearing™ RPM: 3000 RPM Air Flow: 51.5 CFM (1.44m³/min) Width: 25.00mm Weight: 0.203 lb (92.08 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 34.0dB(A) Static Pressure: 0.150 in H2O (37.3 Pa) Part Status: Active Power (Watts): 1.8 W |
auf Bestellung 2236 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
MF92252V1-1000U-A99 | SUNON |
Description: SUNON - MF92252V1-1000U-A99 - DC FAN, VAPO, 92MM, 3000RPM, 24VDC tariffCode: 0 euEccn: NLR Stromanschluss: 2 Lead Wires rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Vapo Bearing Nennleistung: 1.8W isCanonical: Y IP-Schutzart: - Luftstrom - m3/min: - Nennstrom: 75mA Außentiefe: 25mm Geräuschentwicklung: 34dBA Luftstrom - CFM: 51.5cu.ft/min SVHC: No SVHC (27-Jun-2024) Lüfterrahmen: Square Produktpalette: DC Brushless M Series productTraceability: No Rahmengröße: 92mm usEccn: EAR99 Versorgungsspannung, V DC: 24V Nenndrehzahl: 3000rpm directShipCharge: 25 |
auf Bestellung 18 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||
| MF92252V1-1000U-A99 | Sunon |
Motor Fan 92x92x25mm |
auf Bestellung 510 Stücke: Lieferzeit 14-21 Tag (e) |
|
| MF92252V1-1000U-A99 |
|
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 87.04m3/h; 34dBA; Vapo; 3000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 1.92W
Current rating: 75mA
Fan efficiency: 87.04m3/h
Noise level: 34dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 3.81mm H2O
Operating voltage: 8...27.6V DC
Wire size: 24AWG
Fan motor: brushless DC
Additional functions: autorestart
Lead length: 0.31m
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 92x92x25mm; 87.04m3/h; 34dBA; Vapo; 3000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Fan dimensions: 92x92x25mm
Power consumption: 1.92W
Current rating: 75mA
Fan efficiency: 87.04m3/h
Noise level: 34dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 3.81mm H2O
Operating voltage: 8...27.6V DC
Wire size: 24AWG
Fan motor: brushless DC
Additional functions: autorestart
Lead length: 0.31m
auf Bestellung 4048 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 15+ | 5.95 EUR |
| 28+ | 4.52 EUR |
| 56+ | 4.13 EUR |
| 140+ | 3.77 EUR |
| MF92252V1-1000U-A99 |
|
Hersteller: Sunon Fans
Description: FAN AXIAL 92X25MM 24VDC WIRE
Features: Auto Restart
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Vapo-Bearing™
RPM: 3000 RPM
Air Flow: 51.5 CFM (1.44m³/min)
Width: 25.00mm
Weight: 0.203 lb (92.08 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.150 in H2O (37.3 Pa)
Part Status: Active
Power (Watts): 1.8 W
Description: FAN AXIAL 92X25MM 24VDC WIRE
Features: Auto Restart
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Vapo-Bearing™
RPM: 3000 RPM
Air Flow: 51.5 CFM (1.44m³/min)
Width: 25.00mm
Weight: 0.203 lb (92.08 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 34.0dB(A)
Static Pressure: 0.150 in H2O (37.3 Pa)
Part Status: Active
Power (Watts): 1.8 W
auf Bestellung 2236 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 14.85 EUR |
| 10+ | 12.07 EUR |
| 25+ | 11.01 EUR |
| 56+ | 10.14 EUR |
| 112+ | 9.42 EUR |
| 280+ | 9.14 EUR |
| MF92252V1-1000U-A99 |
|
Hersteller: SUNON
Description: SUNON - MF92252V1-1000U-A99 - DC FAN, VAPO, 92MM, 3000RPM, 24VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 1.8W
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 75mA
Außentiefe: 25mm
Geräuschentwicklung: 34dBA
Luftstrom - CFM: 51.5cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 92mm
usEccn: EAR99
Versorgungsspannung, V DC: 24V
Nenndrehzahl: 3000rpm
directShipCharge: 25
Description: SUNON - MF92252V1-1000U-A99 - DC FAN, VAPO, 92MM, 3000RPM, 24VDC
tariffCode: 0
euEccn: NLR
Stromanschluss: 2 Lead Wires
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Vapo Bearing
Nennleistung: 1.8W
isCanonical: Y
IP-Schutzart: -
Luftstrom - m3/min: -
Nennstrom: 75mA
Außentiefe: 25mm
Geräuschentwicklung: 34dBA
Luftstrom - CFM: 51.5cu.ft/min
SVHC: No SVHC (27-Jun-2024)
Lüfterrahmen: Square
Produktpalette: DC Brushless M Series
productTraceability: No
Rahmengröße: 92mm
usEccn: EAR99
Versorgungsspannung, V DC: 24V
Nenndrehzahl: 3000rpm
directShipCharge: 25
auf Bestellung 18 Stücke:
Lieferzeit 14-21 Tag (e)
| MF92252V1-1000U-A99 |
|
Hersteller: Sunon
Motor Fan 92x92x25mm
Motor Fan 92x92x25mm
auf Bestellung 510 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 30+ | 12.03 EUR |
| 60+ | 11.23 EUR |
| 120+ | 10.51 EUR |
| 270+ | 9.87 EUR |
| 510+ | 9.41 EUR |
