Produkte > SCHÜTZINGER > VSFK 8701 / 2.5 / 150 / BL

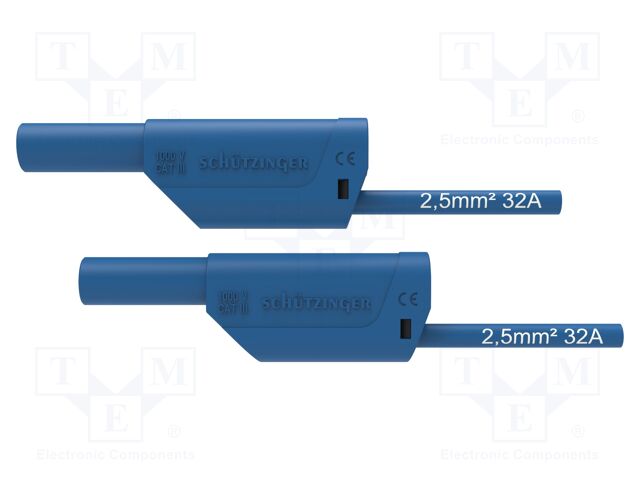

VSFK 8701 / 2.5 / 150 / BL

VSFK 8701 / 2.5 / 150 / BL SCHÜTZINGER

pVersion=0046&contRep=ZT&docId=005056AB90B41EDBABB05FACAEC9A0C7&compId=VSFK_8701_2.5.pdf?ci_sign=7047ab40c1a7026b908b7c7f7292aa9b37b1d1e6 Hersteller: SCHÜTZINGER
Category: Single Test Leads
Description: Test lead; 32A; banana plug 4mm,both sides; Urated: 1kV; Len: 1.5m
Current rating: 32A
Rated voltage: 1kV
Contact plating: gold-plated
Test lead configuration: banana plug 4mm; both sides
Colour: blue
Conform to the norm: CAT III 1000V; EN 61010
Connector variant: insulated; with 4mm axial socket
Wire insulation material: PVC
Type of test accessories: test lead
Operating temperature: -10...70°C
Wire cross-section: 2.5mm2
Max. contact resistance:: 22mΩ
Cable length: 1.5m
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
4+17.88 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details VSFK 8701 / 2.5 / 150 / BL SCHÜTZINGER

Category: Single Test Leads, Description: Test lead; 32A; banana plug 4mm,both sides; Urated: 1kV; Len: 1.5m, Current rating: 32A, Rated voltage: 1kV, Contact plating: gold-plated, Test lead configuration: banana plug 4mm; both sides, Colour: blue, Conform to the norm: CAT III 1000V; EN 61010, Connector variant: insulated; with 4mm axial socket, Wire insulation material: PVC, Type of test accessories: test lead, Operating temperature: -10...70°C, Wire cross-section: 2.5mm2, Max. contact resistance:: 22mΩ, Cable length: 1.5m.
