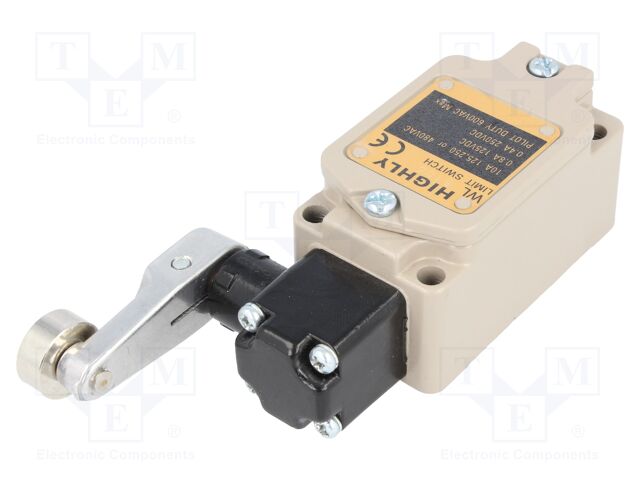

WL-5104 HIGHLY ELECTRIC
Hersteller: HIGHLY ELECTRICCategory: Limit Switches
Description: Limit switch; lever R 38mm, metal roller Ø17,5mm; NO + NC; 10A
Type of sensor: limit switch
Kind of actuator: lever R 38mm, metal roller Ø17,5mm
Output configuration: NO + NC
Contact current max.: 10A
Switched voltage: max. 250V AC; max. 250V DC
Connection: M20
IP rating: IP64
Body dimensions: 72.3x40x41.5mm
Number of mounting holes: 4
Operating temperature: -25...70°C
Body material: metal
AC contacts rating @R: 10A / 125V AC
DC contacts rating @R: 0.4A / 250V DC
Mounting holes pitch: 30.2/58.7mm
auf Bestellung 106 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 23.98 EUR |
| 4+ | 21.92 EUR |
| 10+ | 19.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details WL-5104 HIGHLY ELECTRIC
Category: Limit Switches, Description: Limit switch; lever R 38mm, metal roller Ø17,5mm; NO + NC; 10A, Type of sensor: limit switch, Kind of actuator: lever R 38mm, metal roller Ø17,5mm, Output configuration: NO + NC, Contact current max.: 10A, Switched voltage: max. 250V AC; max. 250V DC, Connection: M20, IP rating: IP64, Body dimensions: 72.3x40x41.5mm, Number of mounting holes: 4, Operating temperature: -25...70°C, Body material: metal, AC contacts rating @R: 10A / 125V AC, DC contacts rating @R: 0.4A / 250V DC, Mounting holes pitch: 30.2/58.7mm.
