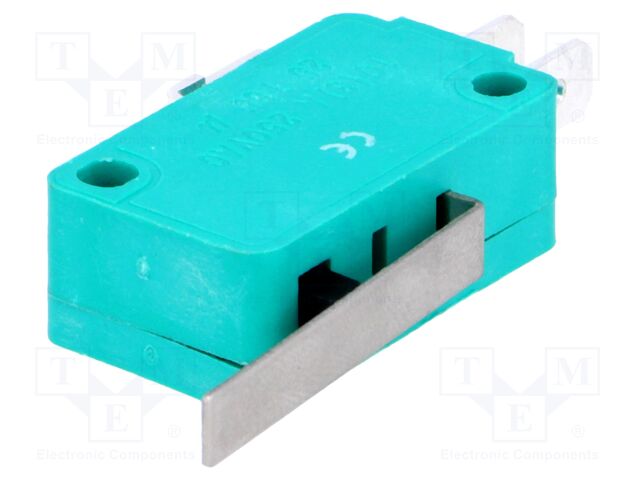

WLK-2 NINIGI
Hersteller: NINIGI
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 10A/250VAC; with lever; SPDT; ON-(ON)
Type of switch: microswitch SNAP ACTION
Contacts configuration: SPDT
Switching method: ON-(ON)
Number of positions: 2
Stable positions number: 1
Leads: connectors
Leads dimensions: 4.8x0.5mm
AC contacts rating @R: 10A / 250V AC
Operating temperature: -25...80°C
Lever length: 27mm
Switches features: with lever
Operating Force: 1.6N
Body dimensions: 28x10.3x16mm
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 30mΩ
Electrical life: 100000 cycles
IP rating: IP40
| Anzahl | Privatkunde |
|---|---|
| 38+ | 2.26 EUR |
| 42+ | 2.06 EUR |
| 49+ | 1.77 EUR |
| 100+ | 1.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details WLK-2 NINIGI
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 10A/250VAC; with lever; SPDT; ON-(ON), Type of switch: microswitch SNAP ACTION, Contacts configuration: SPDT, Switching method: ON-(ON), Number of positions: 2, Stable positions number: 1, Leads: connectors, Leads dimensions: 4.8x0.5mm, AC contacts rating @R: 10A / 250V AC, Operating temperature: -25...80°C, Lever length: 27mm, Switches features: with lever, Operating Force: 1.6N, Body dimensions: 28x10.3x16mm, Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 30mΩ, Electrical life: 100000 cycles, IP rating: IP40.
