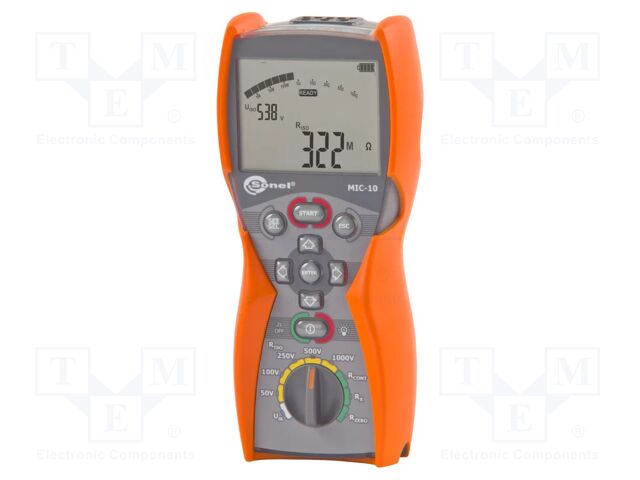

WMDEMIC10 SONEL

Category: Insulation Resistance Meters, Description: Meter: insulation resistance; LCD; R range: 199.9Ω,1999MΩ; IP67, Type of meter: insulation resistance, IP rating: IP67, Kind of display used: LCD, Illumination: yes, Capacitance measuring range: 1...999nF; 1...9.99µF, DC voltage measuring range: 299.9V; 600V, AC voltage measuring range: 299.9V; 600V, Insulation resistance measuring ranges: 0.1MΩ...999.9kΩ; 9.999MΩ; 99.99MΩ; 999.9MΩ; 2GΩ; 5GΩ; 9.999GΩ, Body dimensions: 200x100x60mm, Resistance measuring accuracy: ±(0.3%+3 digit), AC voltage measuring accuracy: ±(2% + 2 digit), DC voltage measuring accuracy: ±(2% + 2 digit), Insulation resistance measuring accuracy: ±(3% + 8digit), Capacitance measuring accuracy: ±(5%+ 10 digit), Test voltage: 50V; 100V; 250V; 500V; 1kV, Resistance measuring range: 199.9Ω; 1999MΩ, Standard equipment: 2 crocodile clips; 2 pointed electrodes; calibration certificate; soft case; test leads, Weight with battery: 600g, Measurement: AC voltage; capacitance; DC voltage; insulation resistance; resistance, Measuring instrument features: automatic power-off; autoranging; low battery indicator, Battery/ rechargeable battery: battery LR6 AA 1,5V x4, Power supply: battery LR6 AA 1,5V x4, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010.
