Produkte > SONEL > WMGBCMP1010
WMGBCMP1010
  • WMGBCMP1010
  • WMGBCMP1010
  • WMGBCMP1010
  • WMGBCMP1010

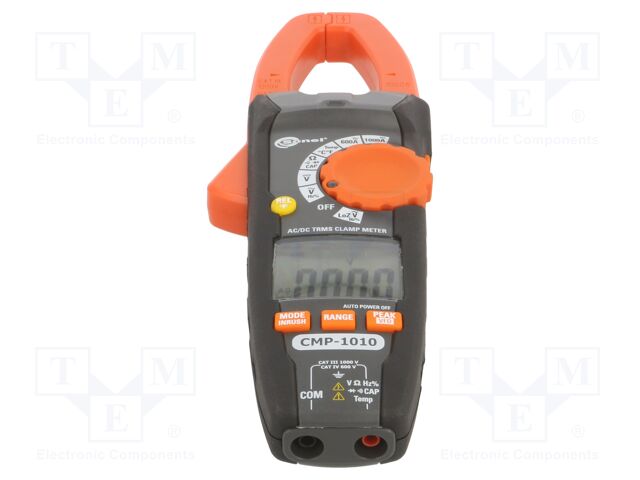

WMGBCMP1010 SONEL


Hersteller: SONEL
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; (6000); I DC: 1kA
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; inrush current; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 1kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 1kV
AC voltage measuring accuracy: ±(1.5% + 5 digit)
DC current measuring range: 1kA
DC current measuring accuracy: ±(2.5% + 5 digit)
AC current measuring range: 1kA
AC current measuring accuracy: ±(2.5% + 8 digit)
True effective value measurement: True RMS AC
Resistance measuring range: 60MΩ
Capacitance measuring range: 100mF
Capacitance measuring accuracy: ±(3%+ 5 digit)
Frequency measuring range: 99.99kHz
Frequency measuring accuracy: ±(1.2%+5 digit)
Temperature measuring range: -20...1000°C
Resistance measuring accuracy: ±(1%+4 digit)
Power supply: battery LR03 AAA 1,5V x3
Standard equipment: calibration certificate; case; drop-like K-type probe; test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Measuring instrument features: automatic power-off; HOLD function; InRush function; MAX function; pocket size; reinforced enclosure
Illumination: yes
Body dimensions: 250x90x40mm
Temperature measurement accuracy: ±(3% + 5°C)
Test: diodes
Kind of meter: digital; pincers type
IP rating: IP30
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details WMGBCMP1010 SONEL

Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,pincers type; LCD; (6000); I DC: 1kA, Type of meter: multifunction, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; inrush current; resistance; temperature, Kind of display used: LCD, Display parameters: (6000), DC voltage measuring range: 1kV, DC voltage measuring accuracy: ±(0.5% + 5 digit), AC voltage measuring range: 1kV, AC voltage measuring accuracy: ±(1.5% + 5 digit), DC current measuring range: 1kA, DC current measuring accuracy: ±(2.5% + 5 digit), AC current measuring range: 1kA, AC current measuring accuracy: ±(2.5% + 8 digit), True effective value measurement: True RMS AC, Resistance measuring range: 60MΩ, Capacitance measuring range: 100mF, Capacitance measuring accuracy: ±(3%+ 5 digit), Frequency measuring range: 99.99kHz, Frequency measuring accuracy: ±(1.2%+5 digit), Temperature measuring range: -20...1000°C, Resistance measuring accuracy: ±(1%+4 digit), Power supply: battery LR03 AAA 1,5V x3, Standard equipment: calibration certificate; case; drop-like K-type probe; test leads, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Measuring instrument features: automatic power-off; HOLD function; InRush function; MAX function; pocket size; reinforced enclosure, Illumination: yes, Body dimensions: 250x90x40mm, Temperature measurement accuracy: ±(3% + 5°C), Test: diodes, Kind of meter: digital; pincers type, IP rating: IP30.
