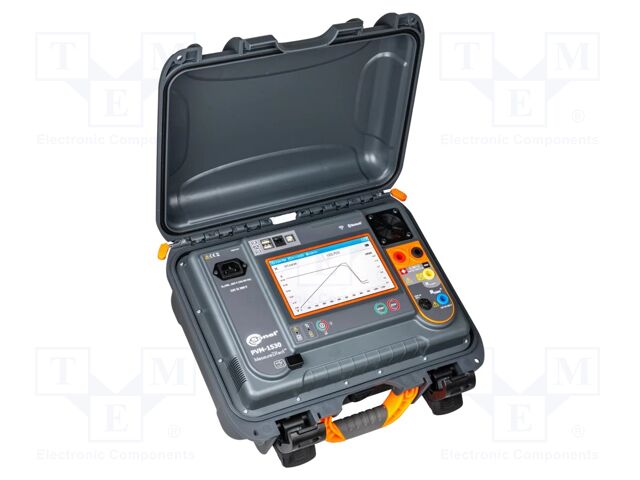

WMPLPVM1530 SONEL

Category: PV and EVSE Testers and Meters, Description: Meter: appliance meter; VAC accuracy: ±(2%+6digit); VAC: 0÷1kV, Type of meter: appliance meter, AC voltage measuring accuracy: ±(2% + 6 digit), AC voltage measuring range: 0...1kV, AC current measuring accuracy: ±(1% + 2 digit), AC current measuring range: 0...30A; 0...40A, DC voltage measuring accuracy: ±(0.5% + 2 digit), DC voltage measuring range: 0...1.5kV, Insulation resistance measuring ranges: 250kΩ...200MΩ; 500kΩ...500MΩ; 1MΩ...1GΩ, Measurement memory: 9999, Standard equipment: 1,8m long test lead (black); 1,8m long test lead (red); 2 crocodile clips; 2 pointed electrodes; 3m long test lead (blue); 3m long test lead (yellow); adapter; cable WAPRZ1X8BLIEC; manufacturer's calibration certificate; soft case; test lead; USB cable, Conform to the norm: CAT III 600V; CAT III 1500VDC, IP rating: IP65, Related items: CMP-1015-PV; IRM-1; WAADAUSBLORA; WAFUTL4; WAKROBL20K01; WAPRZ1X8BLIEC; WAPRZ1X8REBB; WAPRZUSB; WASONBLOGB2; WASONTPVCKPL; WAZASZ24, Measurement: active power; AC voltage; DC voltage; frequency; insolation; insulation resistance; leakage current; resistance; short-circuit current; temperature, Battery/ rechargeable battery: rechargeable battery Li-Ion 7,2V 9800mAh x1, Measuring instruments application: for solar panels; photovoltaics, Interface: Bluetooth; RJ45; USB; WiFi, Power supply: from tested wiring system; rechargeable battery Li-Ion 7,2V 9800mAh x1, Dimensions: 390x308x172mm, Test voltage: 250V; 500V; 1kV, Current measuring resolution: 10mA, Operating temperature: -10...45°C, Storage temperature: -20...60°C, Anzahl je Verpackung: 1 Stücke.
