Produkte > PHILIPS > XITANIUM 150W 0_2-0_7A 300V IXT TD 230V

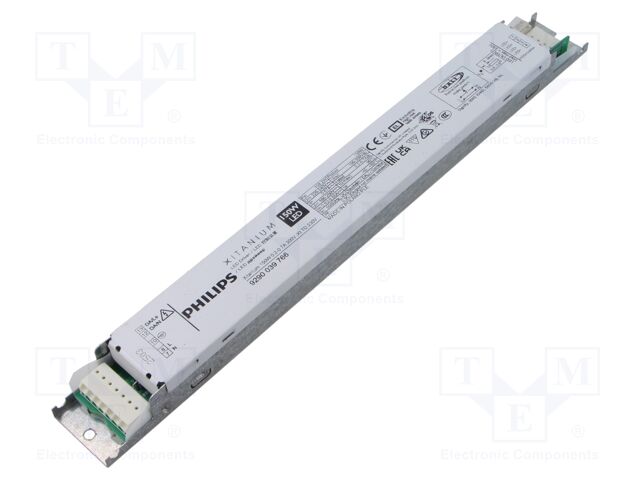

XITANIUM 150W 0_2-0_7A 300V IXT TD 230V
  • XITANIUM 150W 0_2-0_7A 300V IXT TD 230V
  • XITANIUM 150W 0_2-0_7A 300V IXT TD 230V

XITANIUM 150W 0_2-0_7A 300V IXT TD 230V PHILIPS

pVersion=0046&contRep=ZT&docId=005056AB281E1FD095FF500A00E8E0E1&compId=929003976606.pdf?ci_sign=4e0bdddeb8cd1effe48d564593ce8372d7614216 Hersteller: PHILIPS
Category: LED Power Supplies
Description: Power supply: switching; LED; 150W; 100÷300VDC; 200÷700mA; IP20
Operating temperature: -40...60°C
Body dimensions: 280x30x21mm
Electrical connection: spring-loaded terminals
Caution!: rated parameters obtained at full load
Type of power supply: switching
Manufacturer series: Xitanium
Output current: 200...700mA
Number of outputs: 1
Power: 150W
Output voltage: 100...300V DC
Efficiency: 95%
Supply voltage: 220...240V AC
Additional functions: adjustable output current level; DALI
Protection: anti-overload OPP; short circuit protection SCP
Operating modes: constant current
IP rating: IP20
Application: LED
Kind of power supply: LED
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details XITANIUM 150W 0_2-0_7A 300V IXT TD 230V PHILIPS

Category: LED Power Supplies, Description: Power supply: switching; LED; 150W; 100÷300VDC; 200÷700mA; IP20, Operating temperature: -40...60°C, Body dimensions: 280x30x21mm, Electrical connection: spring-loaded terminals, Caution!: rated parameters obtained at full load, Type of power supply: switching, Manufacturer series: Xitanium, Output current: 200...700mA, Number of outputs: 1, Power: 150W, Output voltage: 100...300V DC, Efficiency: 95%, Supply voltage: 220...240V AC, Additional functions: adjustable output current level; DALI, Protection: anti-overload OPP; short circuit protection SCP, Operating modes: constant current, IP rating: IP20, Application: LED, Kind of power supply: LED.
