Produkte > CROMPTON - TE CONNECTIVITY > XL5A-120/5A
XL5A-120/5A

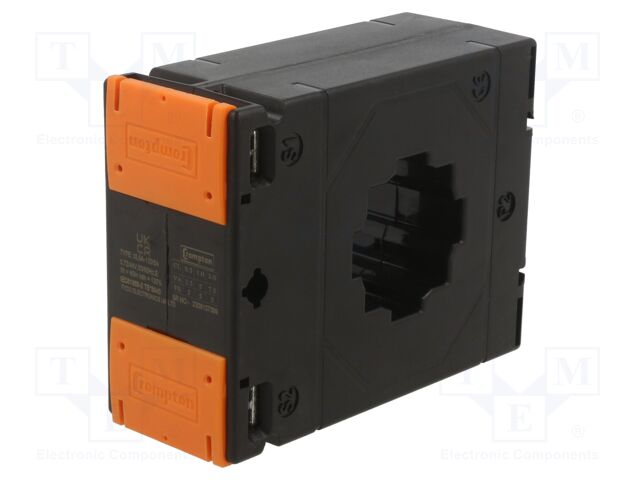

XL5A-120/5A CROMPTON - TE CONNECTIVITY

pVersion=0046&contRep=ZT&docId=005056AB281E1EDDBC91BA7ECF8E40D5&compId=Current%20transformers.pdf?ci_sign=28a078420733b679045cf409a4b09d429b281757 Hersteller: CROMPTON - TE CONNECTIVITY
Category: Current Transformers
Description: Transformer: current; Iin: 120A; Iout: 5A; 0.5@max2.5VA,1@max5VA
Typ of Transformer: current
Manufacturer series: XL5A
Input current: 120A
Output current: 5A
Accuracy class: 0.5 @max 2.5VA; 1 @max 5VA
Internal diameter: 36mm
Operating frequency: 50...60Hz
Related items: XL-DRBRK-3; XL-KIT-003
Dimensions (a x b x c): 86x45x110mm
Operating temperature: -20...45°C
Mounting: for DIN rail mounting (optional); screw
Conform to the norm: BS 3839; EN 60044-1; EN 61869-1
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+71.5 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details XL5A-120/5A CROMPTON - TE CONNECTIVITY

Category: Current Transformers, Description: Transformer: current; Iin: 120A; Iout: 5A; 0.5@max2.5VA,1@max5VA, Typ of Transformer: current, Manufacturer series: XL5A, Input current: 120A, Output current: 5A, Accuracy class: 0.5 @max 2.5VA; 1 @max 5VA, Internal diameter: 36mm, Operating frequency: 50...60Hz, Related items: XL-DRBRK-3; XL-KIT-003, Dimensions (a x b x c): 86x45x110mm, Operating temperature: -20...45°C, Mounting: for DIN rail mounting (optional); screw, Conform to the norm: BS 3839; EN 60044-1; EN 61869-1.
