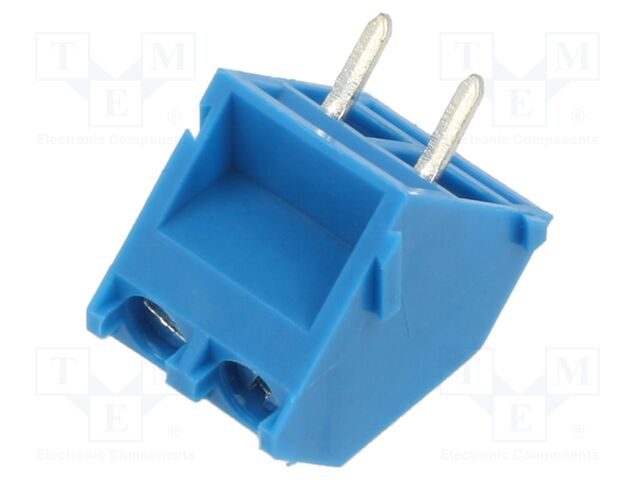

XY104-2P 5.0MM BLUE

XY104-2P 5.0MM BLUE XINYA

pVersion=0046&contRep=ZT&docId=005056AB281E1FD099F388AAD48A00E1&compId=XY104-5.0.pdf?ci_sign=b95dd628efa55709e704646bf0f73e079d15f3db Hersteller: XINYA
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 15A; 300V; angled 45°
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled 45°
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Contact material: brass
Contact plating: tinned
Colour: blue
Body material: polyamide
Contacts pitch: 5mm
Number of ways: 2
Connectors features: assembling possibility
Number of terminals: 2
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Wire cross-section: 2.5mm2
Length: 10mm
Height: 12mm
Depth: 12.5mm
Current rating: 15A
Wire size: 22AWG...12AWG
Rated voltage: 300V
Connector pinout layout: 1x2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3202 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
272+0.26 EUR
338+0.21 EUR
397+0.18 EUR
486+0.15 EUR
Mindestbestellmenge: 272
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details XY104-2P 5.0MM BLUE XINYA

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 15A; 300V; angled 45°, Type of connector: PCB terminal block, Connector: terminal, Spatial orientation: angled 45°, Mechanical mounting: on PCBs, Electrical mounting: screw terminal; THT, Contact material: brass, Contact plating: tinned, Colour: blue, Body material: polyamide, Contacts pitch: 5mm, Number of ways: 2, Connectors features: assembling possibility, Number of terminals: 2, Flammability rating: UL94V-0, Operating temperature: -40...105°C, Wire cross-section: 2.5mm2, Length: 10mm, Height: 12mm, Depth: 12.5mm, Current rating: 15A, Wire size: 22AWG...12AWG, Rated voltage: 300V, Connector pinout layout: 1x2, Anzahl je Verpackung: 1 Stücke.
