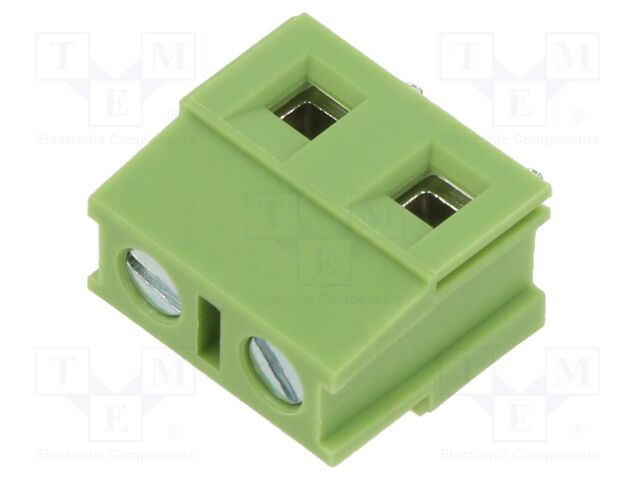

XY128VB-2P 7.5MM GREEN XINYA
Hersteller: XINYA
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 15A; 300V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Colour: green
Contacts pitch: 7.5mm
Number of ways: 2
Number of terminals: 2
Height: 14.3mm
Length: 10mm
Depth: 10.3mm
Contact material: brass
Connector pinout layout: 1x2
Wire cross-section: 2.5mm2
Wire size: 24AWG...12AWG
Connectors features: assembling possibility
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...105°C
Current rating: 15A
Flammability rating: UL94V-0
Body material: polyamide
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 15A; 300V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Colour: green
Contacts pitch: 7.5mm
Number of ways: 2
Number of terminals: 2
Height: 14.3mm
Length: 10mm
Depth: 10.3mm
Contact material: brass
Connector pinout layout: 1x2
Wire cross-section: 2.5mm2
Wire size: 24AWG...12AWG
Connectors features: assembling possibility
Contact plating: tinned
Rated voltage: 300V
Operating temperature: -40...105°C
Current rating: 15A
Flammability rating: UL94V-0
Body material: polyamide
auf Bestellung 6275 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 250+ | 0.29 EUR |
| 307+ | 0.23 EUR |
| 458+ | 0.16 EUR |
| 485+ | 0.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details XY128VB-2P 7.5MM GREEN XINYA
Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 15A; 300V; angled 90°, Type of connector: PCB terminal block, Connector: terminal, Spatial orientation: angled 90°, Mechanical mounting: on PCBs, Electrical mounting: screw terminal; THT, Colour: green, Contacts pitch: 7.5mm, Number of ways: 2, Number of terminals: 2, Height: 14.3mm, Length: 10mm, Depth: 10.3mm, Contact material: brass, Connector pinout layout: 1x2, Wire cross-section: 2.5mm2, Wire size: 24AWG...12AWG, Connectors features: assembling possibility, Contact plating: tinned, Rated voltage: 300V, Operating temperature: -40...105°C, Current rating: 15A, Flammability rating: UL94V-0, Body material: polyamide.
