Produkte > GOSSEN METRAWATT > Z506H

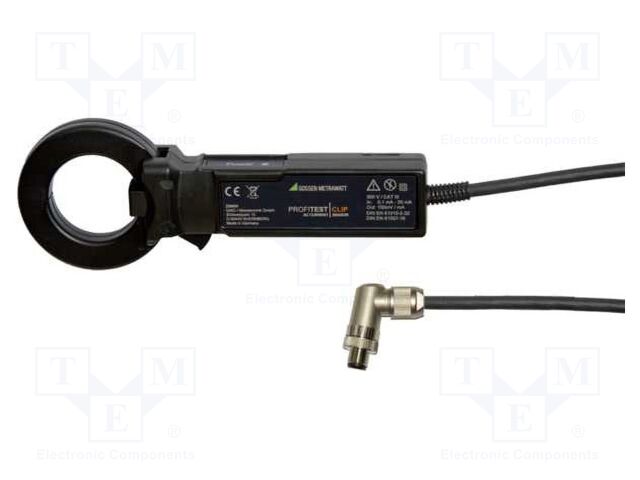

Z506H GOSSEN METRAWATT

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB74C1CD1E0C0DC&compId=GM-Z506H_EN_DTE.pdf?ci_sign=4faf14e3b57c040bacdfb2a77ad5910854905538

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB74C1CD1E120DC&compId=GM-Z506H_DE_DTE.pdf?ci_sign=7f2145300ab17b15c11253562f0705d26e05ea8a

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB7530D6D1980DC&compId=GM-Z506H_EN_INS.pdf?ci_sign=0d09d266633c8dfaf0569ee8fccb8006b74e60de

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB7530D6D19E0DC&compId=GM-Z506H_DE_INS.pdf?ci_sign=cbbf06e19c07f5447f8f86d75de27c0755acf3a1

Hersteller: GOSSEN METRAWATT
Category: Meters and AC/DC Clamp Probes
Description: AC current clamp adapter; Øcable: 25mm; I AC: 0.1÷10mA; ±5%; IP40
Type of test accessories: AC current clamp adapter
Conform to the norm: CAT II 600V; CAT III 300V; EN 60529; EN 61010; EN 61326
Cable length: 1.8m
Operating temperature: -10...45°C
Related items: GM-M506G; GM-M506H; GM-M516G; GM-M516H; GM-M516L
Dimensions: 62x28x172mm
Max. diameter of measured cable: 25mm
Measurement: AC current; differential current; leakage current
AC current measuring range: 0.1...10mA
AC current measuring accuracy: ±5%
IP rating: IP40

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details Z506H GOSSEN METRAWATT

Category: Meters and AC/DC Clamp Probes, Description: AC current clamp adapter; Øcable: 25mm; I AC: 0.1÷10mA; ±5%; IP40, Type of test accessories: AC current clamp adapter, Conform to the norm: CAT II 600V; CAT III 300V; EN 60529; EN 61010; EN 61326, Cable length: 1.8m, Operating temperature: -10...45°C, Related items: GM-M506G; GM-M506H; GM-M516G; GM-M516H; GM-M516L, Dimensions: 62x28x172mm, Max. diameter of measured cable: 25mm, Measurement: AC current; differential current; leakage current, AC current measuring range: 0.1...10mA, AC current measuring accuracy: ±5%, IP rating: IP40.
